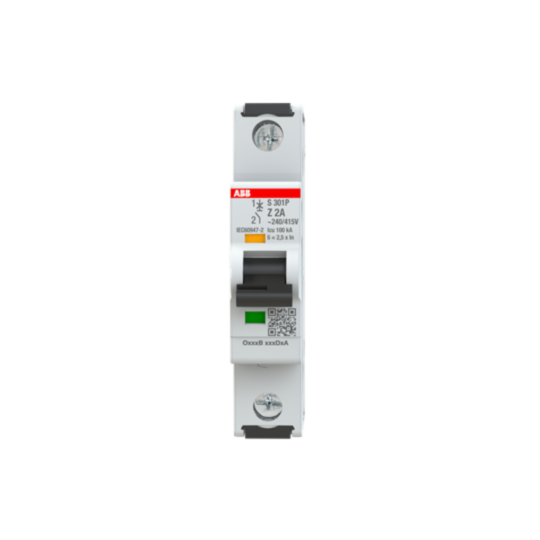

2CDS381001R0278 ABB S301P-Z2 Miniature Circuit Breaker - 1P - Z - 2 A
MPN: 2CDS381001R0278
Alt. SKU: S301P-Z2
Special Price
£38.51
£32.09
Regular Price
£70.01
This product replaces this item:
Why Choose the S301P-Z2 [2CDS381001R0278]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker (MCB) for overload and short circuit protection.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Number of Poles: 1P.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals with fail-safe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible conductors 0.75–25 mm², rigid/stranded conductors 0.75–35 mm², busbar 10/10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides overload and short circuit protection in industrial installations.
What is the rated short-circuit breaking capacity?
The rated ultimate and service short-circuit breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
How many poles does the MCB have?
The MCB S300P series has 1 pole (1P).
What is the electrical endurance of the MCB?
The electrical endurance is rated at 20,000 AC cycles.
What is the connecting capacity for conductors?
It supports flexible conductors from 0.75 to 25 mm² and rigid/stranded conductors from 0.75 to 35 mm², with a busbar capacity of 10/10 mm².
What type of terminals does the MCB use?
The MCB features screw terminals with a fail-safe bi-directional cylinder-lift design.
What are the dielectric test voltage specifications?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
| Manufacturer Part Number | 2CDS381001R0278 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080309 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 2A |
| Alternative Product SKU | S301P-Z2 |
