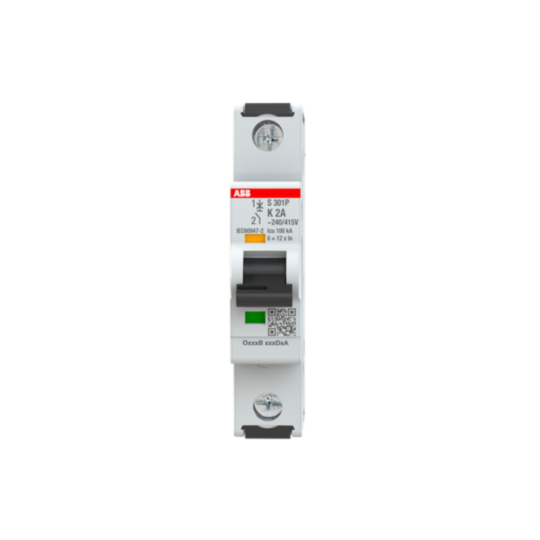

2CDS381001R0277 ABB S301P-K2 Miniature Circuit Breaker - 1P - K - 2 A
MPN: 2CDS381001R0277
Alt. SKU: S301P-K2
Special Price
£35.72
£29.77
Regular Price
£64.96
This product replaces this item:
Why Choose the S301P-K2 [2CDS381001R0277]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker (MCB) for overload and short circuit protection in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Operating Voltage: Up to 480Y/277 V AC (UL/CSA rated).
- Contact Configuration: Single Pole (1P), toggle actuator with red ON/green OFF indication.
- Terminal Type and Capacity: Failsafe bi-directional cylinder-lift screw terminals; flexible 0.75–25 mm², rigid/stranded 0.75–35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides overload and short circuit protection in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
What is the maximum operating voltage for this MCB?
The maximum operating voltage is up to 480Y/277 V AC (UL/CSA rated).
What is the terminal capacity for cable connections?
The terminal capacity is flexible 0.75–25 mm² and rigid/stranded 0.75–35 mm².
How many mechanical and electrical endurance cycles does this MCB have?
The MCB has a mechanical and electrical endurance of 20,000 cycles each.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
What standards does the MCB S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0277 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080316 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 2A |
| Alternative Product SKU | S301P-K2 |
