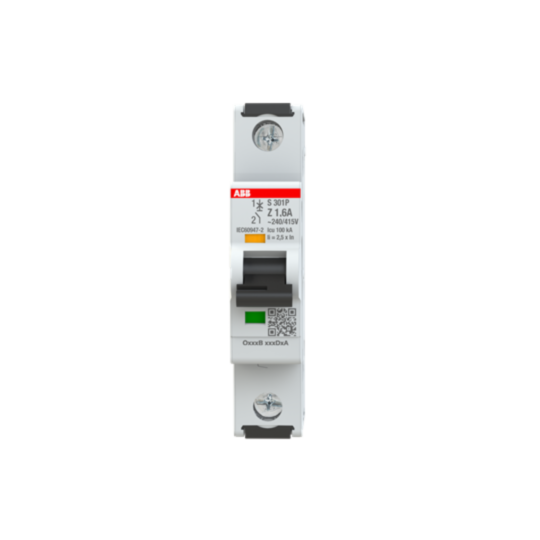

2CDS381001R0258 ABB S301P-Z1.6 Miniature Circuit Breaker - 1P - Z - 1.6 A
MPN: 2CDS381001R0258
Alt. SKU: S301P-Z1.6
Special Price
£38.51
£32.09
Regular Price
£70.01
This product replaces this item:
Why Choose the S301P-Z1.6 [2CDS381001R0258]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230 V AC, 240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 230 V AC, 240 V AC and 72 V DC.
- Voltage Rating: Maximum operating voltage 480Y / 277 V AC (UL/CSA certified).
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Terminal Type and Capacity: Screw terminals; flexible cables 0.75–25 mm², rigid and stranded up to 35 mm²; busbar 10/10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Mechanical and Electrical Endurance: 20,000 operating cycles each.
- Actuator Type: Toggle, black insulation group II, sealable with I/O marking.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA terminals).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y / 277 V AC, UL/CSA certified.
What types of cables can be connected to the terminals?
The terminals can accommodate flexible cables from 0.75–25 mm² and rigid and stranded cables up to 35 mm².
How many operating cycles can the MCBs S300P series endure?
The product has a mechanical and electrical endurance of 20,000 operating cycles each.
What is the tightening torque for the terminals?
The tightening torque for the terminals is 2.8 N·m (18 in·lb for UL/CSA terminals).
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0258 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080323 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 1.6A |
| Alternative Product SKU | S301P-Z1.6 |
