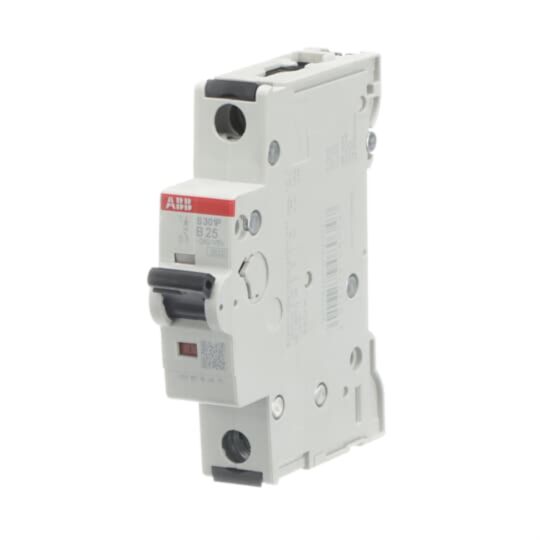

2CDS381001R0255 ABB S301P-B25 Miniature Circuit Breaker - 1P - B - 25 A
MPN: 2CDS381001R0255
Alt. SKU: S301P-B25
Special Price
£22.40
£18.67
Regular Price
£40.74
This product replaces this item:
Why Choose the S301P-B25 [2CDS381001R0255]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker (MCB) for overload and short circuit protection in industrial installations.
- Rated Voltage: 240 V AC / 230 V / 72 V DC.
- Breaking Capacity: Ultimate 25 kA, Service 12.5 kA at 240 V AC and 72 V DC.
- Number of Poles: Single pole (1P).
- Contact Position Indication: Red ON / Green OFF.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift mechanism.
- Connecting Capacity: Flexible up to 25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides overload and short circuit protection in industrial installations.
What are the rated voltage specifications for this MCB?
The rated voltage is 240 V AC, 230 V, and 72 V DC.
What is the breaking capacity of the MCB S300P?
The ultimate breaking capacity is 25 kA, and the service breaking capacity is 12.5 kA at 240 V AC and 72 V DC.
How many poles does the MCB S300P have?
The MCB S300P is a single pole (1P) device.
What is the maximum cable capacity for connections?
The connecting capacity is flexible up to 25 mm², rigid up to 35 mm², and busbar 10/10 mm².
What type of terminals does the MCB S300P use?
The MCB S300P features screw terminals with a failsafe bi-directional cylinder-lift mechanism.
What are the electrical and mechanical endurance ratings?
The electrical endurance is rated for 20,000 AC cycles, and the mechanical endurance is also 20,000 cycles.
| Manufacturer Part Number | 2CDS381001R0255 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080347 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 25A |
| Alternative Product SKU | S301P-B25 |
