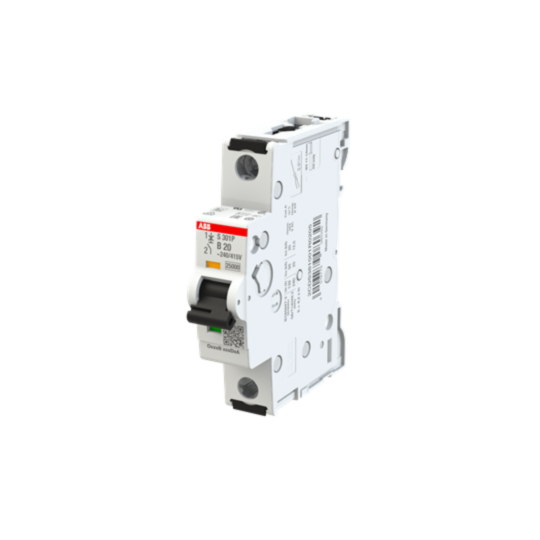

2CDS381001R0205 ABB S301P-B20 Miniature Circuit Breaker - 1P - B - 20 A
MPN: 2CDS381001R0205
Alt. SKU: S301P-B20
Special Price
£21.48
£17.90
Regular Price
£39.05
This product replaces this item:
Why Choose the S301P-B20 [2CDS381001R0205]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA at 240 V AC / 230 V / 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA at 240 V AC / 72 V DC.
- Number of Poles: 1P (single pole).
- Maximum Operating Voltage UL/CSA: 480Y / 277 V AC.
- Terminal Type and Capacity: Screw terminals; busbar 10/10 mm², flexible 0.75–25 mm², rigid 0.75–35 mm².
- Contact Position Indication: Red ON / Green OFF.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 25 kA at 240 V AC / 230 V / 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y / 277 V AC according to UL/CSA standards.
What types of terminals does the MCBs S300P series use?
The product features screw terminals with a busbar capacity of 10/10 mm² and flexible and rigid capacities ranging from 0.75–25 mm² and 0.75–35 mm² respectively.
How many poles does the MCBs S300P series have?
This series has a single pole (1P) configuration.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0205 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080392 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 20A |
| Alternative Product SKU | S301P-B20 |
