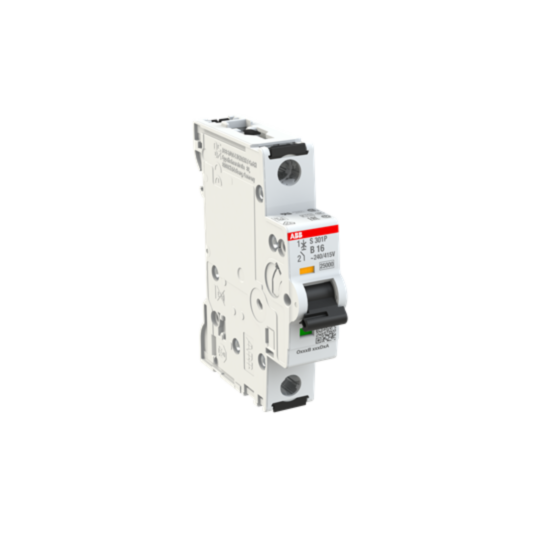

2CDS381001R0165 ABB S301P-B16 Miniature Circuit Breaker - 1P - B - 16 A
MPN: 2CDS381001R0165
Alt. SKU: S301P-B16
Special Price
£19.38
£16.15
Regular Price
£35.23
This product replaces this item:
Why Choose the S301P-B16 [2CDS381001R0165]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA (240 V AC, 230 V AC, 72 V DC).
- Rated Service Short-Circuit Breaking Capacity: 12.5 kA (240 V AC, 72 V DC).
- Number of Poles: 1P (single pole).
- Maximum Operating Voltage: 480Y / 277 V AC (UL/CSA).
- Terminal Type and Capacity: Screw terminals, busbar 10/10 mm², flexible 0.75–25 mm², rigid 0.75–35 mm².
- Dielectric Test Voltage: 2 kV, 50/60 Hz, 1 min.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 240 V AC, 230 V AC, and 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y / 277 V AC (UL/CSA).
What types of terminals does the MCBs S300P series use?
It uses screw terminals with a busbar capacity of 10/10 mm², flexible capacity of 0.75–25 mm², and rigid capacity of 0.75–35 mm².
How many poles does the MCBs S300P series have?
The MCBs S300P series has a single pole (1P).
What is the mechanical and electrical endurance of this product?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0165 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080439 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 16A |
| Alternative Product SKU | S301P-B16 |
