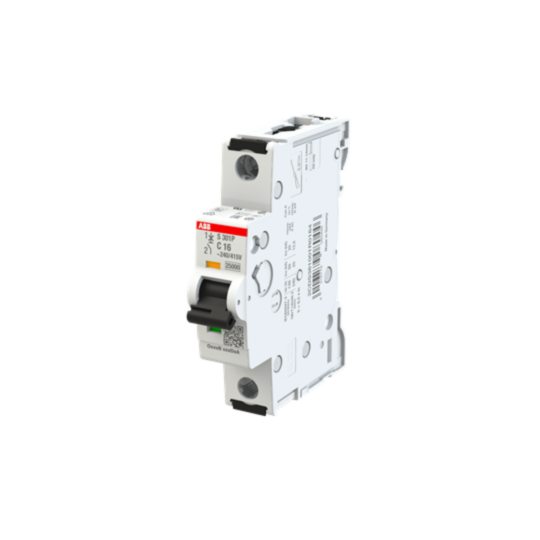

2CDS381001R0164 ABB S301P-C16 Miniature Circuit Breaker - 1P - C - 16 A
MPN: 2CDS381001R0164
Alt. SKU: S301P-C16
Special Price
£20.41
£17.01
Regular Price
£37.12
Why Choose the S301P-C16 [2CDS381001R0164]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA at 240 V AC / 230 V / 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA at 240 V AC / 72 V DC.
- Number of Poles: Single pole (1P) with one protected pole.
- Maximum Operating Voltage (UL/CSA): 480Y / 277 V AC.
- Terminal Type and Capacity: Failsafe bi-directional screw terminals; flexible cables 0.75–25 mm², rigid cables 0.75–35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Contact Position Indication: Red for ON, green for OFF.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 25 kA at 240 V AC / 230 V / 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y / 277 V AC.
What type of terminals does the MCBs S300P series use?
It features failsafe bi-directional screw terminals accommodating flexible cables from 0.75–25 mm² and rigid cables from 0.75–35 mm².
How many poles does the MCBs S300P series have?
The MCBs S300P series has a single pole (1P) with one protected pole.
What is the mechanical and electrical endurance of this product?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0164 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080446 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 16A |
| Alternative Product SKU | S301P-C16 |
