2CDS381001R0157 ABB S301P-K0.5 Miniature Circuit Breaker - 1P - K - 0.5 A
MPN: 2CDS381001R0157
Alt. SKU: S301P-K0.5
Special Price
£35.72
£29.77
Regular Price
£64.96
This product replaces this item:
Why Choose the S301P-K0.5 [2CDS381001R0157]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Number of Poles: Single pole (1P).
- Electrical and Mechanical Endurance: 20,000 AC cycles and 20,000 mechanical cycles.
- Terminal Type and Capacity: Screw terminals; flexible conductors 0.75 to 25 mm², rigid up to 35 mm².
- Contact Position Indication: Red ON / Green OFF.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
- Actuator Type: Toggle with I/O marking, sealable and insulated.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated short-circuit breaking capacity?
The rated ultimate and service short-circuit breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
How many poles does the MCBs S300P series have?
The MCBs S300P series is a single pole (1P) device.
What is the terminal capacity for this product?
The terminals can accommodate flexible conductors from 0.75 to 25 mm² and rigid conductors up to 35 mm².
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
What type of actuator does the MCBs S300P series use?
The actuator type is a toggle with I/O marking, which is sealable and insulated.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0157 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080477 |

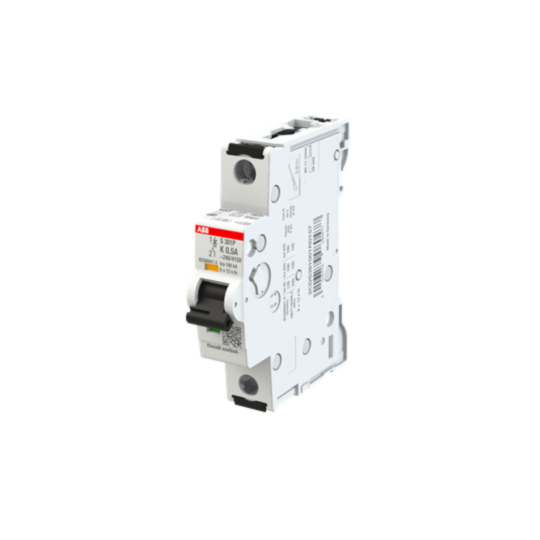

| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 0.5A |
| Alternative Product SKU | S301P-K0.5 |
