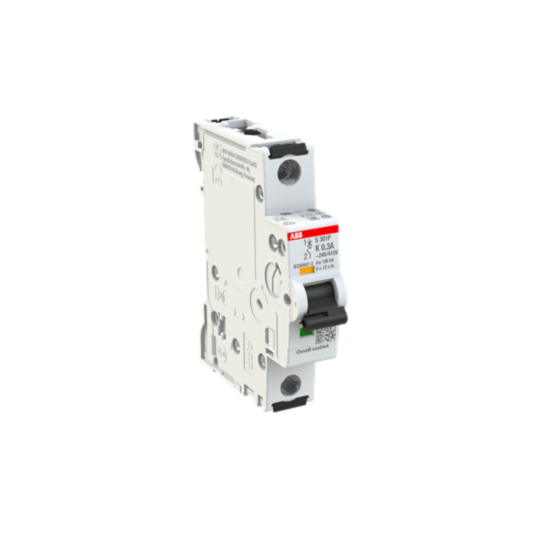

2CDS381001R0117 ABB S301P-K0.3 Miniature Circuit Breaker - 1P - K - 0.3 A
MPN: 2CDS381001R0117
Alt. SKU: S301P-K0.3
Special Price
£37.16
£30.97
Regular Price
£67.56
This product replaces this item:
Why Choose the S301P-K0.3 [2CDS381001R0117]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Number of Poles: Single pole (1P).
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Contact Position Indication: Red ON / Green OFF.
- Terminal Type and Capacity: Screw terminals, accepts flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Electrical and Mechanical Endurance: 20,000 AC cycles and 20,000 mechanical cycles.
- Actuator Type and Material: Toggle actuator, insulation group II, sealable black material.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What types of terminals does the MCBs S300P series use?
It features screw terminals that accept flexible cables of 0.75–25 mm², rigid cables of 0.75–35 mm², and busbars of 10/10 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
How many poles does the MCBs S300P series have?
The MCBs S300P series is a single pole (1P) device.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0117 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080514 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 0.3A |
| Alternative Product SKU | S301P-K0.3 |
