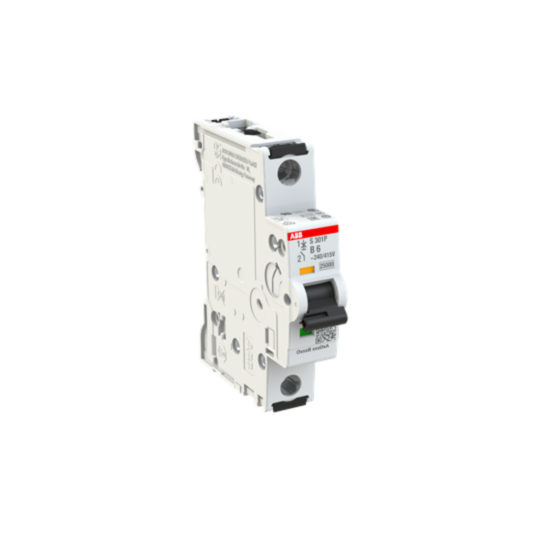

2CDS381001R0065 ABB S301P-B6 Miniature Circuit Breaker - 1P - B - 6 A
MPN: 2CDS381001R0065
Alt. SKU: S301P-B6
Special Price
£22.33
£18.61
Regular Price
£40.61
This product replaces this item:
Why Choose the S301P-B6 [2CDS381001R0065]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker for industrial overload and short circuit protection.
- Rated Voltage: 230/240 V AC, 72 V DC.
- Breaking Capacity: 100 kA ultimate and service short-circuit breaking capacity.
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Rated Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Installation Size: DIN 43880, size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the rated voltages for this circuit breaker?
The rated voltage is 230/240 V AC and 72 V DC.
What is the breaking capacity of the MCBs S300P?
The ultimate and service short-circuit breaking capacity is 100 kA.
What is the terminal type and connecting capacity?
The terminal type is screw terminals with a failsafe bi-directional cylinder-lift design, with a connecting capacity of flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What is the electrical endurance of the MCBs S300P?
The electrical endurance is rated at 20,000 AC cycles.
What are the installation size specifications?
The installation size conforms to DIN 43880, size 1.
Are there any conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0065 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080583 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 6A |
| Alternative Product SKU | S301P-B6 |
