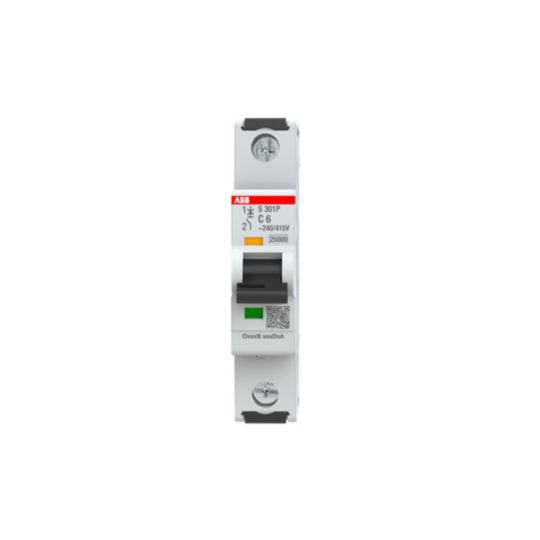

2CDS381001R0064 ABB S301P-C6 Miniature Circuit Breaker - 1P - C - 6 A
MPN: 2CDS381001R0064
Alt. SKU: S301P-C6
Special Price
£22.62
£18.85
Regular Price
£41.12
This product replaces this item:
Why Choose the S301P-C6 [2CDS381001R0064]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Overload and short circuit protection for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230 V AC / 240 V AC / 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230 V AC / 240 V AC / 72 V DC.
- Number of Poles: 1P (single pole).
- Contact Position Indication: Red ON / Green OFF.
- Terminal Type: Failsafe bi-directional screw terminals.
- Connecting Capacity: Flexible 0.75–25 mm², rigid and stranded up to 35 mm², busbar 10/10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides overload and short circuit protection for industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230 V AC / 240 V AC / 72 V DC.
How many poles does the MCBs S300P series have?
The MCBs S300P series is a single pole (1P) device.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid and stranded up to 35 mm², and busbar 10/10 mm².
What type of terminals does the MCBs S300P series use?
It features failsafe bi-directional screw terminals.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0064 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080590 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 6A |
| Alternative Product SKU | S301P-C6 |
