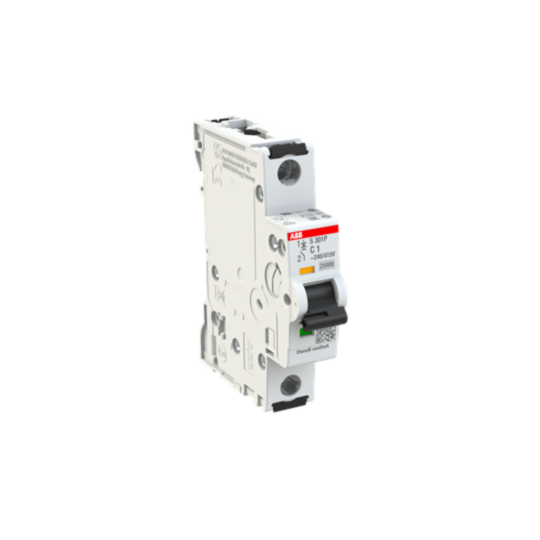

2CDS381001R0014 ABB S301P-C1 Miniature Circuit Breaker - 1P - C - 1 A
MPN: 2CDS381001R0014
Alt. SKU: S301P-C1
Special Price
£27.48
£22.90
Regular Price
£49.97
This product replaces this item:
Why Choose the S301P-C1 [2CDS381001R0014]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230 V AC / 240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 230 V AC / 240 V AC and 72 V DC.
- Number of Poles: 1 Pole (1P).
- Dielectric Test Voltage: 2 kV at 50 / 60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; flexible conductors 0.75–25 mm², rigid up to 35 mm², busbar 10 x 10 mm².
- Contact Position Indication: Red ON / Green OFF.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the main function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 230 V AC / 240 V AC and 72 V DC.
What type of terminals does the MCBs S300P series use?
The MCBs S300P series features screw terminals, accommodating flexible conductors from 0.75–25 mm² and rigid conductors up to 35 mm².
What is the dielectric test voltage for this product?
The dielectric test voltage is 2 kV at 50 / 60 Hz for 1 minute.
How many poles does the MCBs S300P series have?
The MCBs S300P series has 1 pole (1P).
What is the electrical endurance rating of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0014 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080675 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 1A |
| Alternative Product SKU | S301P-C1 |
