2845010 Cembre Z2.5-1 TERMINAL BLOCK
MPN: 2845010
Alt. SKU: Z2.5-1
Special Price
£0.3533
£0.2944
Regular Price
£0.4416
2845010 Cembre Z2.5-1 TERMINAL BLOCK is available to buy in increments of 25

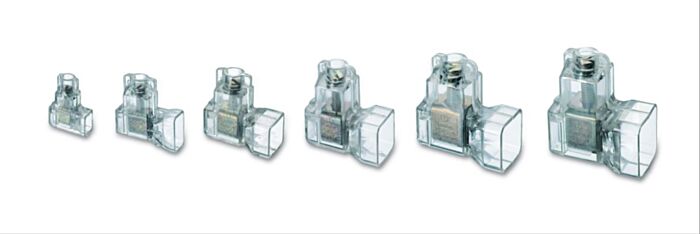

Cembre Z2.5-1 Single Pole Terminal Block - Reliable Connections for Demanding Applications
The Cembre Z2.5-1 single pole terminal block (SKU: 2845010) provides a secure and efficient wiring solution for a range of industrial applications. Built to stringent EN 60998-1 and EN 60998-2-1 standards, this terminal block ensures reliable performance in challenging environments. Its compact design and robust construction make it ideal for panel building, machinery wiring, and maintenance applications.
Key Features
- Secure Clamping: Slotted, captive screw with indirect clamping mechanism and 0.5 Nm torque ensures a firm and lasting connection.
- Durable Construction: Polycarbonate insulated body with electrolytically zinc plated tempered steel cage and clamping element for corrosion resistance and long service life.
- Easy Installation: "Easy insertion input" design simplifies wire insertion and reduces installation time.
- Compliant with Standards: Meets EN 60998-1 and EN 60998-2-1 ensuring safety and reliability.
- Versatile Wiring Options: Accommodates a wide range of cable cross-sections from 0.5 mm² to 2.5 mm².
Technical Specifications
- Part Number: 2845010
- Nominal Voltage: 450V
- Operating Current: 24A
- Cable Cross Section: 0.5 mm² to 2.5 mm²
- Torque: 0.5 Nm
- Screw Pitch: M3x7.5
- Maximum Operating Temperature: 85°C
- Ingress Protection: IP20
- Flammability Rating: UL 94 V0
- Dimensions (H x W x L): 23.5mm x 7.6mm x 20mm
Applications
- Panel building
- Industrial machinery wiring
- Maintenance and repair
- Automation systems
- Control panels
The Z2.5-1 accepts cable cross-sections from 0.5 mm² up to 2.5 mm².
Yes, the Z2.5-1 has a maximum operating temperature of 85°C.
The Z2.5-1 has an IP20 rating, meaning it is protected against solid objects greater than 12mm but not against liquids.
Frequently Asked Questions
What makes this product special?
This product meets strict EN 60998-1 and EN 60998-2-1 compliance standards and is made from robust, corrosion-resistant materials ensuring reliability and longevity.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2845010 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | Z2.5-1 |
| Barcode | 8016692061467 |
| Packed Quantity | 25 |
