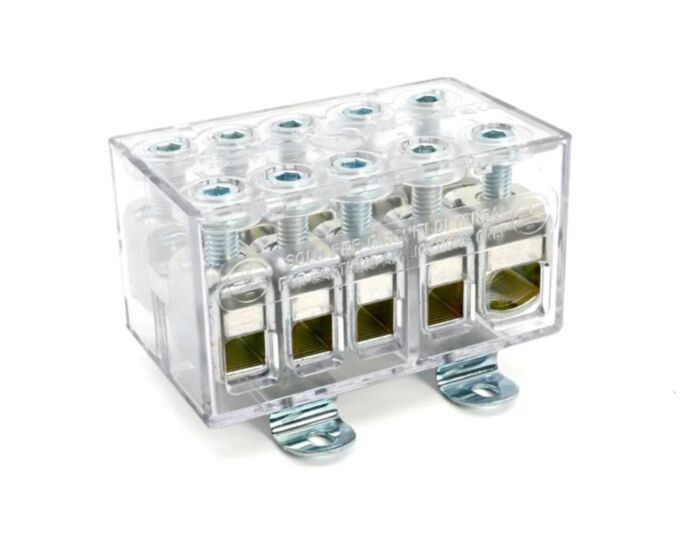

2844230 Cembre Z50-10D TERMINAL BLOCK

Why Choose the Z50-10D Terminal Block?

The Z50-10D is a robust, single-pole terminal block designed for demanding industrial applications. Its high current and voltage capacity, combined with compliance to EN 60998-1 and EN 60998-2-1 standards, ensures reliable and safe connections for cables up to 50mm². The easy insertion input and captive screws simplify installation and reduce maintenance time for electricians, panel builders, and maintenance engineers.

Key Features

• High capacity: Accommodates cables from 4mm² to 50mm².
• Reliable connection: Secure clamping with a 5Nm torque.
• Easy installation: Easy insertion input and captive M6x14.6 screws.
• Standard compliant: Meets EN 60998-1 and EN 60998-2-1.
• Durable construction: Polycarbonate insulated body with zinc-plated steel components.
• Suitable for earth connections: Provides grounding capabilities.
• DIN rail mountable: Simplifies integration into control panels.

Technical Specifications

• SKU: 2844230
• Part Number: Z50-10D
• Maximum Operating Temperature: 85°C
• Clamping Type: Indirect
• Torque: 5 Nm
• Screw Pitch: M6x14.6
• Cable Stripping Length: 21mm
• Cross Section: 4 · 50 mm²
• Number of Poles: 1
• Dimensions (H x W x L): 42mm x 46mm x 77.5mm
• Material (Insulated Body): Polycarbonate
• Material (Clamping Element): Electrolytically zinc-plated tempered steel
• Flammability Rating: UL94 V0

Applications

• Industrial control panels
• Power distribution systems
• Machinery wiring
• Building automation
• HVAC systems
