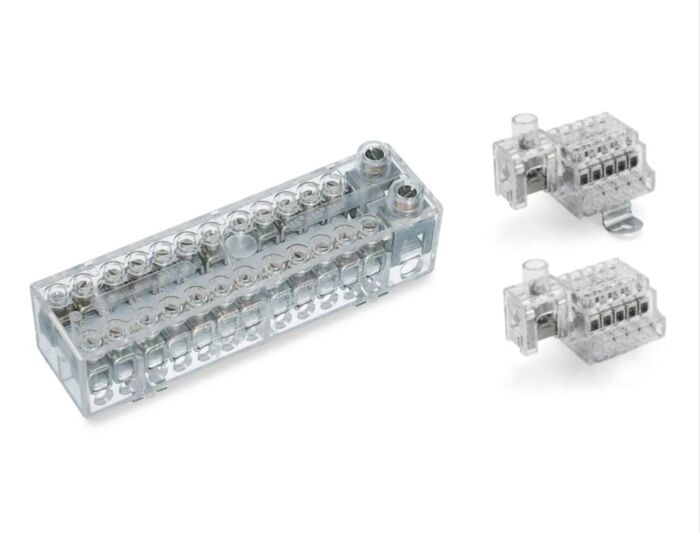

2844220 Cembre Z35T-11 TERMINAL BLOCK
MPN: 2844220
Alt. SKU: Z35T-11
Special Price
£12.14
£10.12
Regular Price
£15.18
2844220 Cembre Z35T-11 TERMINAL BLOCK is available to buy in increments of 10
The Z35T-11 is a robust and reliable single-pole terminal block designed for demanding industrial applications. Suitable for wire sizes from 1mm² to 35mm² and rated at 450V and 170A, this terminal block offers excellent performance and safety features. Its transparent polycarbonate housing allows for easy visual inspection, and the captive screws prevent loss during installation and maintenance.
Why Choose the Z35T-11 Terminal Block?
The Z35T-11 terminal block provides a secure and efficient connection for a wide range of wiring applications. Its durable construction, compliance with relevant standards, and practical design features make it an ideal choice for professional electricians, panel builders, and maintenance engineers.
Key Features
- Wide wire range: 1mm² to 35mm²
- High current rating: 170A
- Rated voltage: 450V
- Transparent polycarbonate housing for easy inspection
- Captive screws for secure and convenient installation
- Suitable for earth connections
- Compliant with EN 60998-1 and EN 60998-2-1
- UL 94 V0 self-extinguishing fire rating
Technical Specifications
- SKU: 2844220
- Part Number: Z35T-11
- Number of Poles: 1
- Operating Current: 170A
- Nominal Voltage: 450V
- Wire Range: 1 - 35mm²
- Clamping Type: Indirect
- Clamping Element Material: Electrolytically zinc-plated tempered steel
- Insulated Body Material: Polycarbonate
- Ingress Protection: IP20
- Maximum Operating Temperature: 85°C
- Short Circuit Current: 6.5kA / 1000ms
- Dimensions (H x W x L): 42mm x 43mm x 58mm
- Packaging: Box of 10
Applications
- Industrial control panels
- Power distribution systems
- Machinery wiring
- Building automation
- Maintenance and repair
Frequently Asked Questions
What makes this product special?
This product meets strict EN 60998-1 and EN 60998-2-1 compliance standards and is made from robust, high-quality materials for reliable performance in demanding environments. The captive screws and transparent housing add to its practicality and ease of use.
What wire sizes are compatible with this terminal block?
This terminal block is suitable for wire sizes ranging from 1mm² to 35mm².
Is it suitable for DIN rail mounting?
No, this terminal block is not designed for DIN rail mounting.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2844220 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | Z35T-11 |
| Barcode | 8016692101743 |
| Packed Quantity | 10 |
