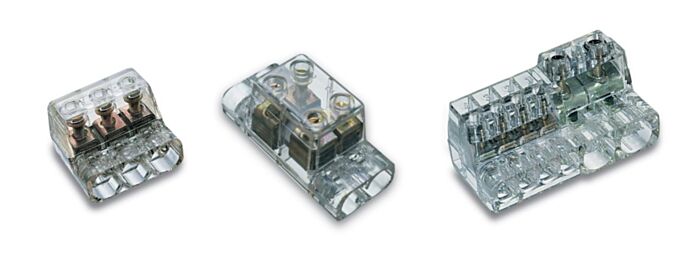

2844210 Cembre Z35-6 TERMINAL BLOCK
MPN: 2844210
Alt. SKU: Z35-6
Special Price
£15.84
£13.20
Regular Price
£19.80
2844210 Cembre Z35-6 TERMINAL BLOCK is available to buy in increments of 8
Z35-6 Single Pole Terminal Block - Reliable Power Distribution for Demanding Applications
The Z35-6 single pole terminal block (SKU: 2844210) offers robust and dependable performance for a wide range of electrical installations. Designed to meet stringent industry standards, including EN 60998-1 and EN 60998-2-1, this terminal block ensures safe and efficient power distribution in demanding environments.
Key Features
- High Current Capacity: Rated for 170A operating current and 6.5kA short-circuit current.
- Wide Wire Range: Accommodates cable cross-sections from 2.5mm² to 35mm².
- Secure Connection: Features a captive, slotted screw clamping mechanism with electrolytic zinc plating for optimal conductivity and corrosion resistance.
- Durable Construction: Polycarbonate insulated body with a V0 flammability rating ensures long-term reliability and safety.
- Easy Installation: Easy insertion input simplifies wiring and reduces installation time.
- Certified Quality: Marked with CE and IMQ certifications, assuring compliance with relevant safety regulations.
- Italian Naval Register Approved: Suitable for marine applications.
Technical Specifications
- Part Number: 2844210
- Cat Number: Z35-6
- Operating Current: 170A
- Short Circuit Current: 6.5kA (1000ms)
- Nominal Voltage: 450V
- Wire Range: 2.5mm² - 35mm²
- Cable Stripping Length: 22mm
- Operating Temperature: Up to 85°C
- Ingress Protection: IP20
- Flammability Rating: UL94 V0
- Standards Compliance: EN 60998-1, EN 60998-2-1
Applications
- Industrial control panels
- Power distribution systems
- Motor control circuits
- Automation systems
- Marine applications (Italian Naval Register approved)
Frequently Asked Questions
What makes this product special?
This product meets stringent industry standards (EN 60998-1 and EN 60998-2-1) and is constructed from robust, high-quality materials, ensuring reliable performance and a long service life in demanding electrical applications.
What wire sizes are compatible with this terminal block?
The Z35-6 terminal block is suitable for wire sizes ranging from 2.5mm² to 35mm².
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2844210 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | Z35-6 |
| Barcode | 8016692049076 |
| Packed Quantity | 8 |
