2844123 Cembre Z16-5ND TERMINAL BLOCK
MPN: 2844123
Alt. SKU: Z16-5ND
Special Price
£9.60
£8.00
Regular Price
£12.00
2844123 Cembre Z16-5ND TERMINAL BLOCK is available to buy in increments of 4

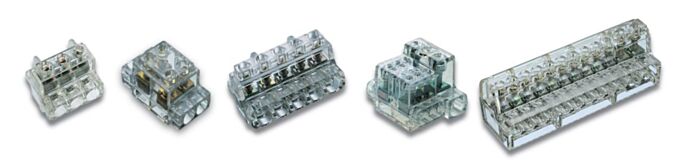

Z16-5ND 5-Way DIN Rail Terminal Block - Secure and Reliable Power Distribution
The Z16-5ND is a robust and versatile 5-way DIN rail terminal block designed for demanding industrial applications. Its durable construction, compliance with EN 60998-1 and EN 60998-2-1 standards, and practical features make it ideal for professional electricians, panel builders, and maintenance engineers.
Key Features
- Secure clamping with captive screws and slotted screw geometry.
- Easy wire insertion for efficient installation.
- DIN rail mountable for organized panel setups.
- V0 self-extinguishing fire rating for enhanced safety.
- Wide range of wire acceptance from 1.5 mm² to 16 mm².
- Clear polycarbonate housing for easy visibility of connections.
Technical Specifications
- Part Number: 2844123
- Operating Current: 100A
- Nominal Voltage: 450V
- Short Circuit Current: 2.7kA @ 1000ms
- Wire Capacity: 1x16 mm² R/F; 1x10 mm² R/F; 1·2x6 mm² R/F; 1·3x4 mm² R/F; 1·4x2.5 mm² R/F; 1·8x1.5 mm² R/F
- Clamping Element Material: Electrolytically zinc-plated tempered steel
- Insulated Body Material: Polycarbonate
- Ingress Protection: IP20
- Maximum Operating Temperature: 85°C
- Standards Compliance: EN 60998-1, EN 60998-2-1
- Dimensions (H x W x L): 38mm x 31.6mm x 61mm
Applications
- Control panels and automation systems
- Industrial machinery and equipment
- Power distribution boards
- Building electrical installations
Frequently Asked Questions
What makes this product special?
This product meets strict EN 60998-1 and EN 60998-2-1 compliance and is made from robust materials including a polycarbonate body and zinc-plated steel clamping elements. It is designed for safe and reliable operation in demanding environments.
What wire sizes are compatible?
The Z16-5ND accommodates a wide range of wire sizes from 1.5 mm² up to 16 mm², offering flexibility for various applications.
Is it suitable for high-temperature use?
Yes, this terminal block is rated for operation up to a maximum temperature of 85°C.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2844123 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | Z16-5ND |
| Barcode | 8016692089386 |
| Packed Quantity | 4 |
