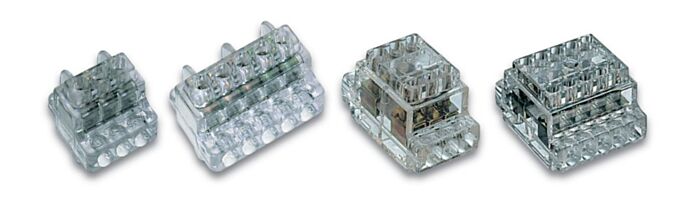

2844108 Cembre Z6-6 TERMINAL BLOCK

The Z6-6 Terminal Block (2844108) provides a robust and dependable solution for your electrical connection needs. Engineered for durability and compliance with EN 60998-1 and EN 60998-2-1 standards, this terminal block ensures secure and efficient power distribution in a variety of industrial settings.

Why Choose the Z6-6 Terminal Block?

The Z6-6 Terminal Block offers several advantages for professional electricians, panel builders, and maintenance engineers:

Key Features

• Robust Construction: Built with electrolytically zinc-plated tempered steel cage and clamping element for long-lasting performance.
• High Current Capacity: Handles operating currents up to 60A and short-circuit currents up to 1kA.
• Secure Connections: Features a slotted screw clamping mechanism with a torque of 0.8 Nm and captive screws for reliable wire termination.
• Versatile Wiring Options: Accommodates a range of cable cross-sections from 1mm² to 6mm².
• Clear Identification: Includes factory markings, Cembre catalogue number, CE mark, nominal section, nominal voltage, and maximum operating temperature.
• Compliant with Standards: Meets EN 60998-1 and EN 60998-2-1 standards for assured safety and performance.

Technical Specifications

• SKU: 2844108
• Part Number: Z6-6
• Operating Current: 60A
• Nominal Voltage: 450V
• Short Circuit Current: 1kA
• Maximum Operating Temperature: 85°C
• Ingress Protection: IP20
• Cable Cross Section: 1mm² - 6mm²
• Number of Poles: 1
• Number of Ways: 6
• Clamping Type: Indirect
• Material: Polycarbonate body, zinc-plated steel cage and clamping element, tin-plated copper plate
• Dimensions (H x W x L): 28mm x 43mm x 23mm

Applications

• Industrial control panels
• Power distribution systems
• Machinery wiring
• Building automation
• HVAC systems
