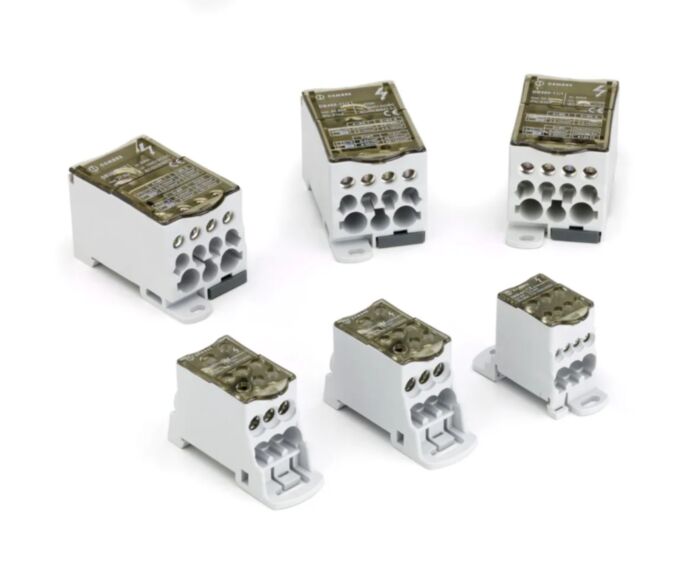

2843711 Cembre DB500-11/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843711
Alt. SKU: DB500-11/1N
Special Price
£53.86
£44.88
Regular Price
£67.32
2843711 Cembre DB500-11/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 3
The DB500-11/1N is a robust and reliable single-pole distribution block designed for demanding industrial applications. Built to the EN 60947-7-1 standard, this 11-way distribution block offers a 500A operating current and excellent short-circuit withstand capabilities, ensuring safe and efficient power distribution in panel building and industrial maintenance environments.
Why Choose the DB500-11/1N?
Optimize your electrical installations with the DB500-11/1N. Its high current carrying capacity, compact design, and compliance with international standards make it the ideal choice for a wide range of applications.
Key Features
- High current carrying capacity: 500A
- 11-way distribution for versatile configurations
- DIN rail mountable for easy installation
- Captive screws for secure and convenient wiring
- Halogen-free and self-extinguishing materials for enhanced safety (UL 94 V0)
- Compliant with EN 60947-7-1
- IP20 ingress protection
- Accepts 8x24mm Flex busbar input
- Various output connection options: 5x(2.5-16mm2), 4x(2.5-10mm2), 2x(6-35mm2)
Technical Specifications
- Part Number/SKU: 2843711
- Cat Number: DB500-11/1N
- Rated Current: 500A
- Number of Poles: 1
- Number of Ways: 11
- Rated Impulse Voltage (Uimp): 1000V
- Rated Short-Time Withstand Current (ICW): 24.5kA
- Rated Peak Withstand Current (IPK): 51kA
- Ingress Protection: IP20
- Conductor Material: Brass with electrolytic tin plating (3µm)
- Clamping Element Material: Zinc plated steel
- Insulated Body Material: Polyamide 6.6 (Grey)
- Cover Material: Polycarbonate (Transparent)
- Dimensions (H x W x L): 96mm x 46mm x 50mm
- Standards Compliance: EN 60947-7-1
- Flammability Rating: UL 94 V0
- Halogen Free: Yes
Applications
- Industrial control panels
- Power distribution systems
- Machinery and equipment wiring
- HVAC systems
- Building automation
- Maintenance and repair operations
Frequently Asked Questions
What makes this product special?
This product meets strict compliance with EN 60947-7-1 and is made from robust, halogen-free materials for enhanced safety and reliability in demanding industrial environments.
What types of wire can I use with this distribution block?
The DB500-11/1N accepts a wide range of wire sizes, including 2.5mm2 to 35mm2, and is compatible with both solid and flexible conductors. It can also accommodate an 8x24mm Flex busbar for input connections.
How do I mount this distribution block?
The DB500-11/1N is designed for easy mounting onto standard DIN rails.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843711 |
| Alternative Product SKU | DB500-11/1N |
| Packed Quantity | 3 |
