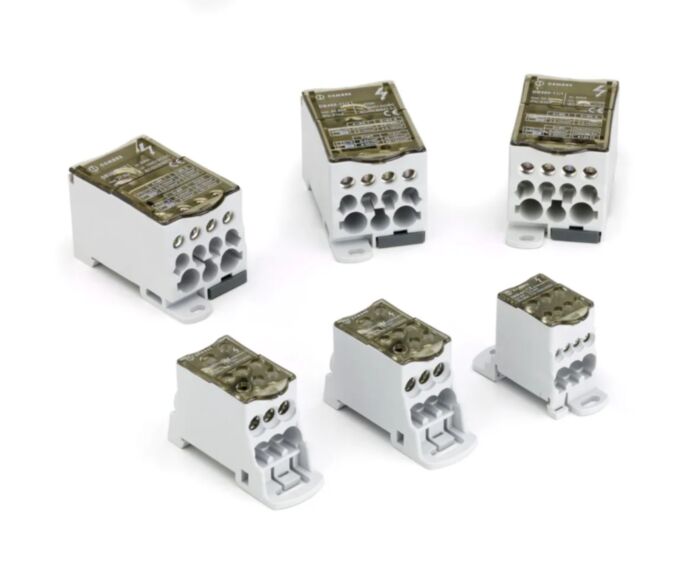

2843709 Cembre DB400-11/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843709
Alt. SKU: DB400-11/1N
Special Price
£51.26
£42.72
Regular Price
£64.08
2843709 Cembre DB400-11/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 3
The DB400-11/1N is a robust and reliable single-pole distribution block designed for demanding industrial applications. Built to EN 60947-7-1 standards, this distribution block offers exceptional performance and safety for professional electricians, panel builders, and maintenance engineers.
Why Choose the DB400-11/1N?
This distribution block provides a secure and efficient solution for power distribution in a wide range of industrial settings. Its high current rating, robust construction, and compliance with industry standards make it a dependable choice for professionals.
Key Features
- High current rating of 400A
- 11-way connection capability
- DIN rail mountable for easy installation
- Captive screws for secure and convenient wiring
- Halogen-free and self-extinguishing (UL 94 V0) for enhanced safety
- Compliant with EN 60947-7-1
- IP20 ingress protection
Technical Specifications
- Part Number/SKU: 2843709
- Number of Poles: 1
- Operating Current: 400A
- Rated Short-Time Withstand Current (ICW): 24.5kA
- Rated Peak Withstand Current (IPK): 51kA
- Rated Impulse Voltage (Uimp): 1000V
- Input Connection Capacity: 1x95-185mm2 R/F
- Output Connection Capacity: 5x2.5-16mm2 R/F; 4x2.5-10mm2 R/F; 2x6-35mm2 R/F
- Conductor Body Material: Brass (Electrolytic Tin Plating)
- Clamping Element Material: Zinc Plated Steel
- Insulated Body Material: Polyamide 6.6
- Cover Material: Polycarbonate
- Ingress Protection: IP20
- Dimensions (H x W x L): 96mm x 46mm x 50mm
- Mounting: DIN Rail
Applications
- Industrial control panels
- Power distribution systems
- Machinery and equipment wiring
- Automation systems
- Maintenance and repair applications
The DB400-11/1N is halogen-free and features a self-extinguishing UL 94 V0 rating, contributing to enhanced fire safety. The captive screws prevent accidental loss and ensure secure connections.
Please refer to the technical specifications for the operating temperature range. Ensure the ambient temperature remains within the specified limits for optimal performance and safety.
Frequently Asked Questions
What makes this product special?
This product meets the stringent requirements of EN 60947-7-1 and is manufactured from high-quality, robust materials, ensuring reliability and long-term performance in demanding industrial environments.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843709 |
| Alternative Product SKU | DB400-11/1N |
| Packed Quantity | 3 |
