2843707 Cembre DB250-11/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843707
Alt. SKU: DB250-11/1N
Special Price
£47.14
£39.28
Regular Price
£58.92
2843707 Cembre DB250-11/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 3

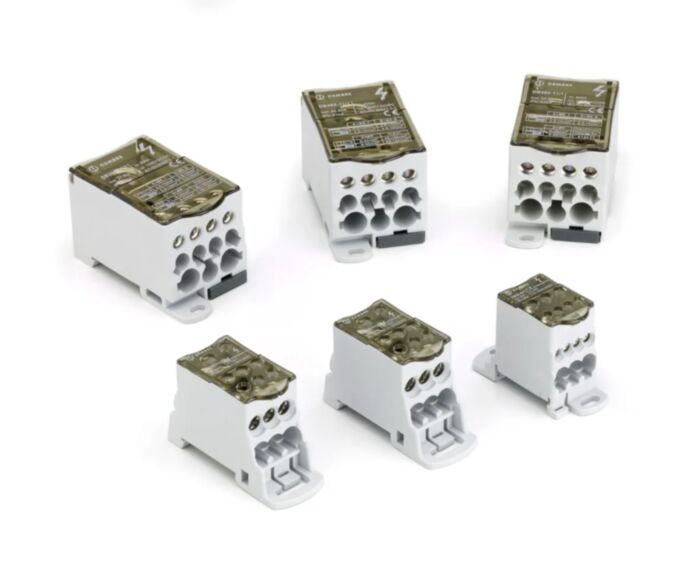

DB250-11/1N Single Pole Distribution Block (2843707)
The DB250-11/1N single pole distribution block offers reliable and efficient power distribution for demanding industrial applications. Designed for panel builders, electricians, and maintenance engineers, this robust block ensures secure connections and complies with the EN 60947-7-1 standard.
Why Choose the DB250-11/1N?
This distribution block provides superior performance and safety, streamlining your installation process and ensuring long-term reliability. Its key benefits include easy wire insertion, captive screws for convenient assembly, and a halogen-free, self-extinguishing design for enhanced safety.
Key Features
- Compliant with EN 60947-7-1: Ensures safety and reliability in demanding environments.
- Easy Insertion Input: Simplifies and speeds up wiring.
- Captive Screws: Prevents screw loss during installation and maintenance.
- Halogen-Free & Self-Extinguishing (UL 94 V0): Enhanced fire safety and reduced risk of toxic fumes.
- DIN Rail Mountable: Facilitates quick and organized panel mounting.
- Versatile Connection Options: Accommodates a wide range of wire sizes.
Technical Specifications
- Part Number/SKU: 2843707
- Cat Number: DB250-11/1N
- Rated Current: 250A
- Number of Poles: 1
- Number of Ways: 11
- Ingress Protection: IP20
- Rated Impulse Voltage (Uimp): 1000V
- Rated Short-Time Withstand Current (ICW): 24.5kA
- Rated Peak Withstand Current (IPK): 51kA
- Input Connection Capacity: 1x35·120 mm² R/F
- Output Connection Capacity: 5x2.5·16 mm² R/F; 4x2.5·10 mm² R/F; 2x6·35 mm² R/F
- Dimensions (H x W x L): 96mm x 46mm x 50mm
- Material (Conductor Body): Brass with electrolytic tin plating (3 µm)
- Material (Insulated Body): Polyamide 6.6 (Grey)
- Material (Clamping Element): Zinc plated steel
- Material (Cover): Polycarbonate (Transparent)
Applications
- Industrial control panels
- Power distribution systems
- Machinery and automation
- HVAC systems
The DB250-11/1N accommodates input wires from 35mm² to 120mm² (R/F) and output wires ranging from 2.5mm² to 35mm² (R/F), offering flexibility for various applications.
Frequently Asked Questions
What makes this product special?
This product meets the stringent requirements of the EN 60947-7-1 standard and is constructed with robust, high-quality materials, ensuring reliability and longevity in demanding industrial applications. The halogen-free construction further enhances safety.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843707 |
| Alternative Product SKU | DB250-11/1N |
| Packed Quantity | 3 |
