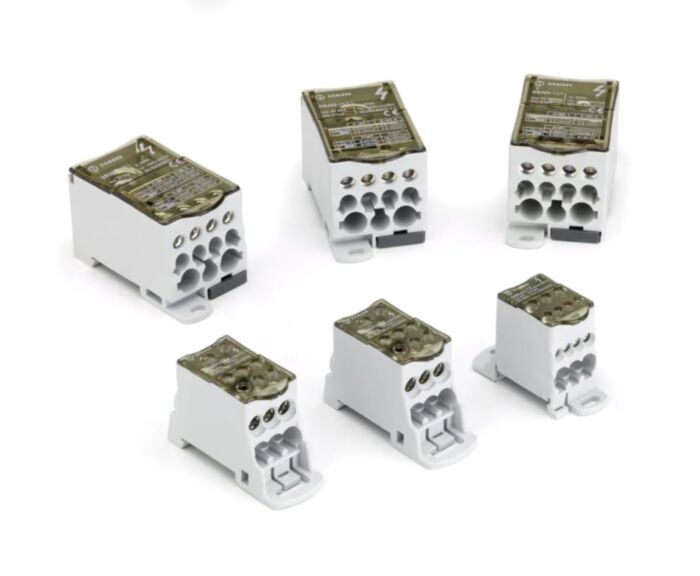

2843705 Cembre DB160-7/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843705
Alt. SKU: DB160-7/1N
Special Price
£36.29
£30.24
Regular Price
£45.36
2843705 Cembre DB160-7/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 5
Why Choose the DB160-7/1N Single Pole Distribution Block?
The DB160-7/1N single pole distribution block offers superior performance and reliability for your electrical distribution needs. Designed for demanding applications, this robust distribution block complies with EN 60947-7-1, ensuring safety and longevity in various industrial environments. Its easy insertion input, captive screws, and clear polycarbonate cover streamline installation and maintenance, while the halogen-free construction prioritizes safety.
Key Features
- High Current Capacity: Rated for 160A operating current and robust short-circuit withstand capabilities (11.8kA ICW, 30kA IPK).
- Versatile Connectivity: Accommodates a wide range of wire sizes (1x10-70mm2 input, 6x2.5-16mm2 & 1x6-16mm2 output).
- Secure and Reliable: Features captive screws, direct clamping, and a robust tin-plated brass conductor body for optimal conductivity and long-term performance.
- DIN Rail Mountable: Easy and secure installation on standard DIN rails.
- Halogen-Free: Enhanced safety and compliance with stringent environmental regulations.
- Compliant with EN 60947-7-1: Guaranteeing safety and performance in demanding industrial settings.
- IP20 Ingress Protection: Protection against solid objects.
Technical Specifications
- SKU: 2843705
- Part Number: DB160-7/1N
- Rated Impulse Voltage (Uimp): 1000V
- Number of Poles: 1
- Number of Ways: 7
- Operating Current: 160A
- Rated Short-Time Withstand Current (ICW): 11.8kA
- Rated Peak Withstand Current (IPK): 30kA
- Input Connection Capacity: 1x10-70mm2 R/F
- Output Connection Capacity: 6x2.5-16mm2 R/F; 1x6-16mm2 R/F
- Conductor Material: Brass (tin-plated)
- Clamping Element Material: Steel (zinc-plated)
- Insulated Body Material: Polyamide 6.6
- Cover Material: Polycarbonate (transparent)
- Dimensions (HxWxD): 77mm x 29mm x 46mm
Applications
- Industrial control panels
- Power distribution systems
- Machine building
- HVAC systems
- Automation and robotics
Frequently Asked Questions
What makes this product special?
This product meets strict EN 60947-7-1 compliance and is made from robust, halogen-free materials for enhanced safety and reliability in demanding industrial environments. The easy insertion input and captive screws simplify installation and maintenance.
What wire sizes are compatible?
The DB160-7/1N accepts 1x10-70mm2 ring/fork terminals for the input and 6x2.5-16mm2 & 1x6-16mm2 ring/fork terminals for the outputs.
Is it suitable for DIN rail mounting?
Yes, the DB160-7/1N is designed for easy and secure mounting on standard DIN rails.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843705 |
| Alternative Product SKU | DB160-7/1N |
| Packed Quantity | 5 |
