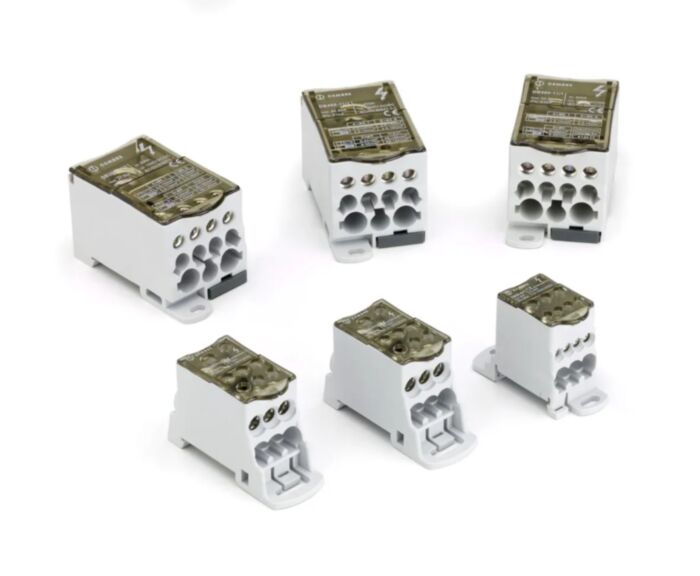

2843703 Cembre DB125-7/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843703
Alt. SKU: DB125-7/1N
Special Price
£21.46
£17.88
Regular Price
£26.82
2843703 Cembre DB125-7/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 5
The DB125-7/1N is a robust and reliable single-pole distribution block designed for demanding industrial applications. Built to EN 60947-7-1 standards, this distribution block ensures safe and efficient power distribution in panel building, industrial maintenance, and other electrical installations.
Why Choose the DB125-7/1N?
This distribution block offers superior performance and reliability for professionals. Its high current carrying capacity, convenient features, and robust construction make it ideal for a variety of industrial applications.
Key Features
- High current carrying capacity of 125A
- EN 60947-7-1 compliant for guaranteed safety and performance
- Easy insertion input for simplified wiring
- Captive screws prevent loss and ensure secure connections
- Halogen-free materials for enhanced fire safety (UL 94 V0)
- DIN rail mountable for convenient installation
Technical Specifications
- Part Number: 2843703
- Catalogue Number: DB125-7/1N
- Number of Poles: 1
- Operating Current: 125A
- Rated Short-Time Withstand Current (ICW): 4.2kA
- Rated Peak Withstand Current (IPK): 30kA
- Rated Impulse Voltage (Uimp): 1000V
- Input Connection Capacity: 1x10·35 mm² R/F
- Output Connection Capacity: 6x2.5·16 mm² R/F; 1x6·16 mm² R/F
- Ingress Protection: IP20
- Dimensions (H x W x L): 77 x 29 x 46 mm
- Mounting: DIN Rail
Applications
- Panel Building
- Industrial Automation
- Machinery Control
- Industrial Maintenance
- Power Distribution Systems
Frequently Asked Questions
What makes this product special?
This product meets the stringent requirements of EN 60947-7-1 and is manufactured from robust, high-quality materials, including a tin-plated brass conductor body and a halogen-free polyamide 6.6 insulated body, ensuring long-term reliability and safety in demanding industrial environments.
What are the key safety features?
Key safety features include a high short-time withstand current rating, self-extinguishing UL 94 V0 rated materials, and compliance with EN 60947-7-1 ensuring reliable and safe operation.
What tools are needed for installation?
Installation requires standard tools suitable for DIN rail mounting and tightening Allen key screws.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843703 |
| Alternative Product SKU | DB125-7/1N |
| Packed Quantity | 5 |
