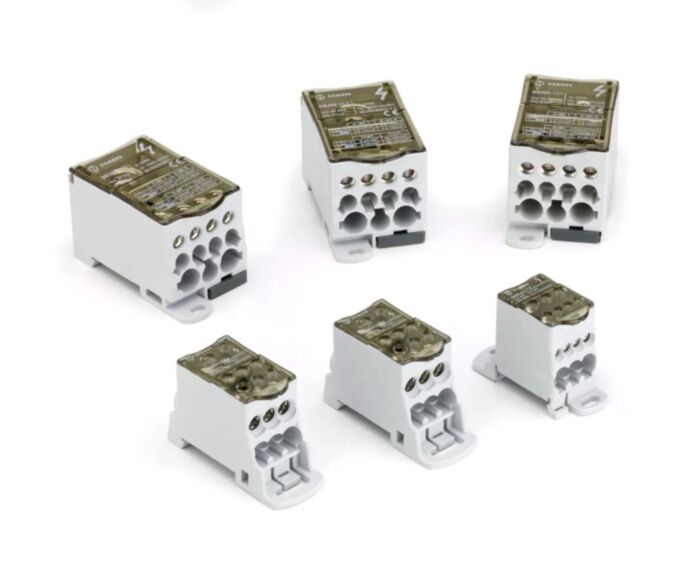

2843701 Cembre DB80-6/1N SINGLE POLE DISTRIBUTION BLOCK
MPN: 2843701
Alt. SKU: DB80-6/1N
Special Price
£10.42
£8.68
Regular Price
£13.02
2843701 Cembre DB80-6/1N SINGLE POLE DISTRIBUTION BLOCK is available to buy in increments of 5
The DB80-6/1N Single Pole Distribution Block is a robust and reliable solution for distributing power in a variety of industrial and commercial applications. Designed for professional electricians, panel builders, and maintenance engineers, this distribution block offers exceptional performance and adheres to stringent safety standards including EN 60947-7-1. Its compact design and secure connections ensure efficient and safe wiring management.
Why Choose the DB80-6/1N?
This distribution block offers significant advantages in terms of safety, reliability, and ease of installation. Its key features ensure a long service life and optimal performance in demanding environments.
Key Features
- Safe and Compliant: Meets EN 60947-7-1, ensuring compliance with industry standards for safety and performance.
- Durable Construction: Built with a tin-plated brass conductor body and a robust polyamide 6.6 insulated body for long-lasting reliability.
- Easy Installation: Features easy insertion input, captive screws, and DIN rail mounting for quick and efficient installation.
- Versatile Connectivity: Offers multiple input and output connection options for flexible wiring configurations.
- Halogen-Free: Made with halogen-free materials, contributing to a safer working environment.
Technical Specifications
- SKU: 2843701
- Part Number: DB80-6/1N
- Rated Current: 80A
- Rated Impulse Voltage (Uimp): 1000V
- Rated Short-Time Withstand Current (ICW): 3kA
- Rated Peak Withstand Current (IPK): 22kA
- Number of Poles: 1
- Number of Ways: 6
- Ingress Protection: IP20
- Input Connection Capacity: 1x6·16 mm² R/F
- Output Connection Capacity: 4x2.5·6 mm² R/F; 2x2.5·16 mm² R/F
- DIN Rail Mountable: Yes
- Halogen Free: Yes
- Flammability Rating: UL94 V0
Applications
- Industrial control panels
- Power distribution systems
- Machinery and automation
- Building infrastructure
- Maintenance and repair applications
Key benefits include easy installation, secure connections, versatile wiring options, and compliance with industry safety standards.
Frequently Asked Questions
What makes this product special?
This product meets strict compliance with EN 60947-7-1 and is made from robust, halogen-free materials, ensuring safety and reliability in demanding applications.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2843701 |
| Alternative Product SKU | DB80-6/1N |
| Packed Quantity | 5 |
