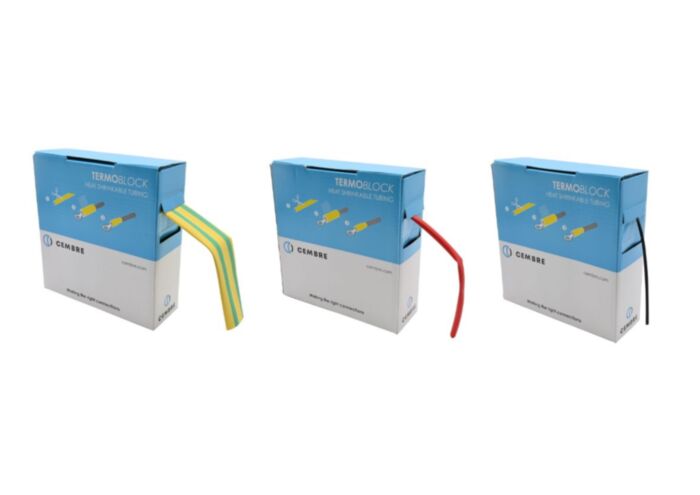

2811269 Cembre TBS64X10WH TERMOBLOCK

Why Choose the TBS64X10WH Heat Shrink Tubing?

The TBS64X10WH 2:1 heat shrink tubing provides reliable insulation and protection for wiring in demanding environments. Ideal for electricians, panel builders, and maintenance engineers, this high-quality polyolefin tubing offers excellent performance and conforms to stringent industry standards including UL224, IEC 243, and IEC 93. Its halogen-free composition ensures safety and minimizes environmental impact.

Key Features

• Robust Protection: Withstands temperatures from -55°C to 125°C, ensuring reliable performance in extreme conditions.
• Compliant & Safe: Halogen-free, RoHS compliant, and meets UL VW-1 flammability rating for enhanced safety.
• Easy Application: 2:1 shrink ratio allows for easy installation and a tight, secure fit.
• Durable & Long-lasting: High tensile strength and elongation at break after thermal aging ensure long-term reliability.
• Versatile Use: Suitable for a wide range of electrical applications in various industries.

Technical Specifications

• Part Number: 2811269
• Manufacturer: TERMOBLOCK
• Cat Number: TBS64X10WH
• Electrocode: 36D1
• ETIM Class 7: Shrink tubing [EC000217]
• Customs code: 39173200
• Material: Polyolefin
• Color: White
• Shrink Ratio: 2:1
• Minimum Shrinkage Temperature: 70°C
• Full Shrinkage Temperature: 110°C
• Inner Diameter (pre-shrinkage): 6.5mm
• Inner Diameter (post-shrinkage): 3mm
• Thickness (post-shrinkage): 0.56mm
• Coil Length: 10m
• Operating Temperature: -55°C to 125°C
• Flammability: UL VW-1
• Halogen Free: Yes
• RoHS Compliant: Yes

Applications

• Wire harnessing and cable bundling
• Electrical insulation and protection
• Strain relief and environmental sealing
• Automotive and aerospace applications
• Industrial control panels
