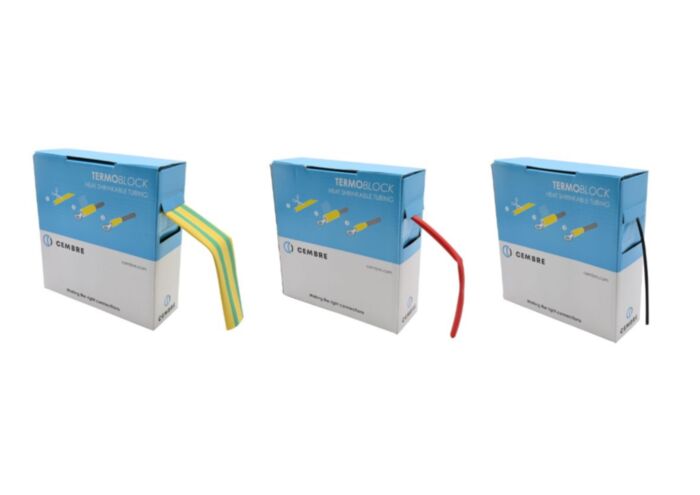

2811239 Cembre TBS32X10BR TERMOBLOCK

SKU: 2811239

Why Choose TBS32X10BR Heat Shrink Tubing?

The TBS32X10BR heat shrink tubing provides reliable insulation and protection for your wiring in demanding industrial environments. Engineered for superior performance and compliance with international standards, this 2:1 shrink ratio polyolefin tubing offers excellent dielectric strength, flexibility, and flame resistance, ensuring long-lasting durability and safety.

Key Features

• 2:1 shrink ratio for a tight, secure fit
• Halogen-free and RoHS compliant for environmental responsibility
• Operating temperature range from -55°C to +125°C
• Excellent dielectric strength (15 kV/mm) and flame resistance (VW-1)
• Complies with UL 224, IEC 243, and IEC 93 standards
• Brown color for clear identification and aesthetic integration
• Available in convenient 10-meter coils

Technical Specifications

• Part Number: TBS32X10BR
• Electrocode: 36D1
• ETIM Class 7: Shrink tubing [EC000217]
• Customs Code: 39173200
• Minimum Operating Temperature: -55°C
• Maximum Operating Temperature: 125°C
• Shrink Ratio: 2:1
• Inner Diameter (Pre-Shrink): 3.0mm
• Inner Diameter (Post-Shrink): 1.3mm
• Wall Thickness (Post-Shrink): 0.45mm
• Coil Length: 10m
• Color: Brown
• Material: Polyolefin (Halogen-free)

Applications

• Protecting and insulating electrical connections
• Wire bundling and cable management
• Strain relief for wire terminations
• Repairing damaged cable jackets
• Suitable for automotive, aerospace, and industrial applications
