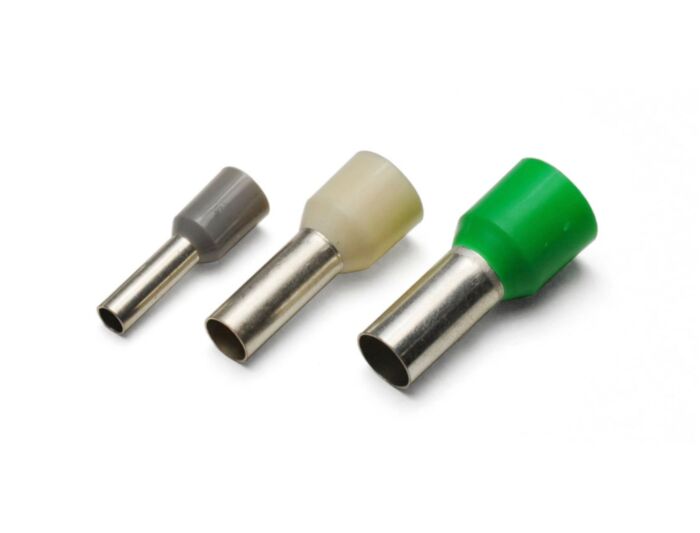

2809605 Cembre PKC120027 INSULATED END SLEEVE
MPN: 2809605
Alt. SKU: PKC120027
Special Price
£2.93
£2.44
Regular Price
£3.67
2809605 Cembre PKC120027 INSULATED END SLEEVE is available to buy in increments of 75
Why Choose the PKC120027 Insulated End Sleeve?
The PKC120027 Insulated End Sleeve provides a secure and reliable termination for your high-current electrical connections. Designed for demanding industrial applications, this blue, tin-plated copper end sleeve ensures optimal performance and compliance with stringent industry standards, including a UL 94 V2 fire rating and halogen-free construction. Its robust design and easy insertion feature contribute to efficient installation and long-lasting performance, minimizing downtime and maintenance costs.
Key Features
- Secure and reliable crimping for 120mm² cables.
- Durable tin-plated copper construction for superior conductivity and corrosion resistance.
- Halogen-free and UL 94 V2 fire-rated for enhanced safety.
- Easy insertion design for efficient and streamlined installations.
- Wide operating temperature range (-20°C to 105°C, with short bursts up to 130°C).
- Compliant with ETIM Class 7: Cable end sleeve [EC000005].
Technical Specifications
- SKU/Part Number: 2809605
- Cat Number: PKC120027
- Operating Temperature: -20°C to 105°C (short bursts up to 130°C)
- Fire Rating: UL 94 V2
- Conductor Material: Electrolytic copper (99.95% purity) with tin plating (min. 3µm thickness)
- Insulation Material: Polyamide PA6 (16.5 kV/mm dielectric strength)
- Cable Cross-Section: 120mm²
- Cable Stripping Length: 27mm
- Dimensions (L x Ø2 x Ø3 x C x P): 48mm x 20mm x 16.7mm x 21mm x 27mm
- Halogen-Free: Yes
- ETIM Class: 7 (Cable end sleeve [EC000005])
- Packaging: Box (25 pieces per inner box, 75 pieces per standard box)
- Minimum Order Quantity: 25 pieces
- Customs Code: 85369010
Applications
- Industrial control panels
- High-current power distribution systems
- Motor connections
- Heavy-duty machinery
- Construction and infrastructure projects
Frequently Asked Questions
This product meets strict compliance standards, including UL 94 V2 and halogen-free requirements, and is made from robust, high-quality materials like tin-plated copper for enhanced performance and reliability in demanding environments.
The PKC120027 is designed for 120mm² cables.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2809605 |
| Colour | Blue |
| Country of Manufacture | Taiwan |
| HS Code | 85369010 |
| Alternative Product SKU | PKC120027 |
| Barcode | 8016692574783 |
| Packed Quantity | 75 |
| Product Lead Time | Please contact us for a delivery time |
