2770830 Cembre MTA95-C BIMET PIN TERMINAL

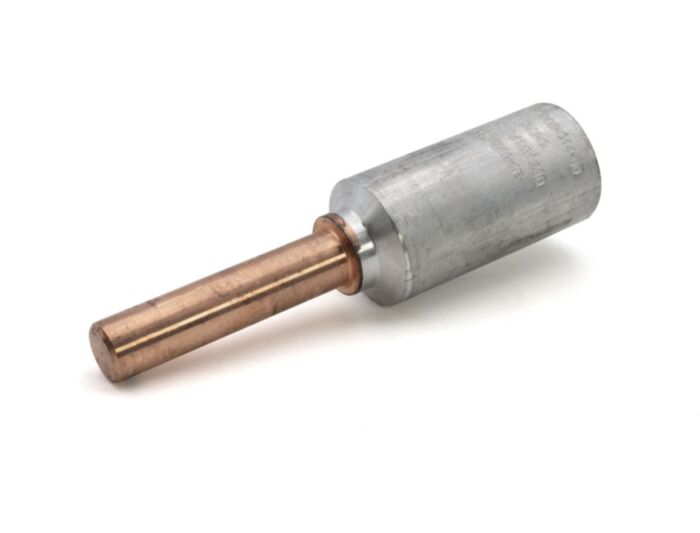

MTA95-C Bimetal Pin Terminal: Reliable Connections for Demanding Applications

The MTA95-C Bimetal Pin Terminal (SKU: 2770830) is designed for secure and efficient electrical connections in challenging industrial environments. Built to exacting standards (UNI EN 573-3:2009; UNI EN 13600:2003), this crimp cable lug offers exceptional performance and longevity.

Key Features

• Robust Bimetallic Construction: Electrolytic copper palm and aluminium barrel provide excellent conductivity and corrosion resistance.
• High-Temperature Performance: Operates reliably in temperatures from -50°C to 150°C.
• Enhanced Reliability: Features friction-welded barrel and palm connection, internal grease (NILENA), and filler putty (TEROSTAT VII) for optimal performance and protection.
• Compliance with EN 61238-1: Ensures consistent tensile strength for secure connections.
• Clear Markings: Factory mark, Cembre catalogue number, conductor section and nature, and compression die code provide easy identification.

Technical Specifications

• SKU/Part Number: 2770830
• Cat Number: MTA95-C
• ETIM Class 7: Crimp cable lug for aluminium conductors [EC001053]
• Cable Cross Section: 95 mm²
• Minimum/Maximum Operating Temperature: -50°C / 150°C
• Dimensions (B x P x X x L x A x x 1): 12 x 45 x 12 x 97 x 43 x 12.5 x 20 mm
• Cable Stripping Length: 47.3 mm
• Customs Code: 85369010
• Minimum Order Quantity: 3 pieces
• Unit in Standard Packaging: 30 pieces

Applications

• Industrial control panels
• Power distribution systems
• Motor connections
• High-temperature environments
• Maintenance and repair applications
