2742550 Cembre AA185-M14 ALUMINIUM TERMINAL

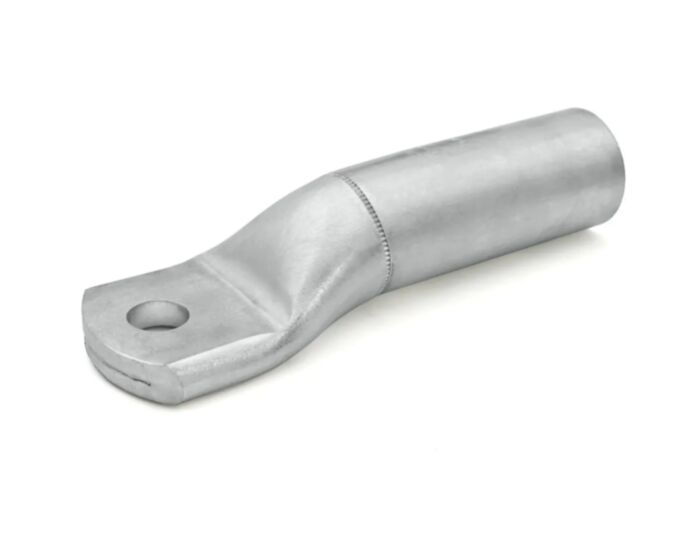

MONOMETAL RING TERMINAL - Cembre (AA185-M14): Industrial-grade performance for demanding applications

AA-M series terminals are made from aluminum pipe with purity greater than 99.5%. They are the ideal choice for low- and medium-voltage connection of three-core M.T. cables with visible aluminum helix and aluminum-coated stainless steel support ropes. The inner surface is protected from oxidation by a special high drop point grease. The thickness of the circular crown and the length of the collar are such as to ensure a highly reliable electrical connection. Typical uses include control panels, switchgear, machinery and general electrical installations.

Key Features

• AA-M series terminals are made from aluminum pipe with purity greater than 99.5%
• They are the ideal choice for low- and medium-voltage connection of three-core M.T
• cables with visible aluminum helix and aluminum-coated stainless steel support ropes. The inner surface is protected from oxidation by a special high drop point grease. The thickness of the circular crown and the length of the collar are such as to ensure a highly reliable electrical connection

Technical Specifications

• Maximum operating voltage [v]: M14
• Screw diameter: 15
• ØD [mm]: 42
• B [mm]: 16
• N [mm]: 22
• M [mm]: 110
• I [mm]: 185 ÷ 185
• Range of cable cross section [mm²]: 126
• L [mm]: 64
• A [mm]: 17
• Ø [mm]: 71
• Cable stripping length [mm]: 32
• Ø1 [mm]: 18

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

Frequently Asked Questions

• What is this product used for? MONOMETAL RING TERMINAL - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
