2630200 Cembre CPU1230-3D CRIMPING UNIT

Cembre - Making the right connections (CPU1230-3D): Industrial-grade performance for demanding applications

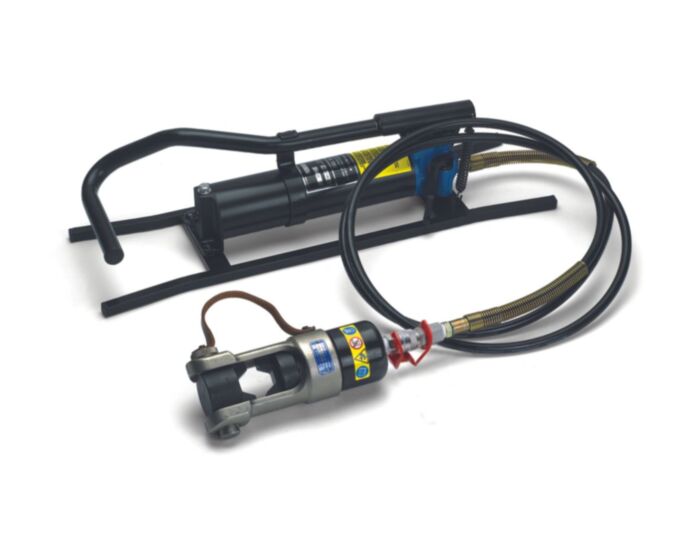

The CPU1230-3D hydraulic press consists of a portable BO7000 hydraulic pump, complete with a two-speed hydraulic system, capable of exerting a pressure of up to 700 bar via a convenient pedal-operated lever. The press is complemented by an ECW-H3D hydraulic head, which is suitable for installing crimping electrical connectors on conductors up to 630 mm2 with the help of the standard die set compatible with other 230 kN tools and heads. Using the AU520-130C adapter, this head can use the semicircular plug-in die set common to tools developing a force of 130 kN. It is also compatible with a series of dies for compressing DIN-compliant electrical connectors and with a series of dies for cutting copper, aluminium, aldrey and aluminium-steel ropes.

Key Features

• The CPU1230-3D hydraulic press consists of a portable BO7000 hydraulic pump, complete with a two-speed hydraulic system, capable of exerting a pressure of up to 700 bar via a convenient pedal-operated lever. The press is complemented by an ECW-H3D hydraulic head, which is suitable for installing crimping electrical connectors on conductors up to 630 mm2 with the help of the standard die set compatible with other 230 kN tools and heads. Using the AU520-130C adapter, this head can use the semicircular plug-in die set common to tools developing a force of 130 kN
• It is also compatible with a series of dies for compressing DIN-compliant electrical connectors and with a series of dies for cutting copper, aluminium, aldrey and aluminium-steel ropes

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

• What is this product used for? Cembre - Making the right connections is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
