2599360 Cembre B1300L-CE BATTERY CRIMPING TOOL

BATTERY-POWERED HYDRAULIC CRIMPING TOOL - Cembre (B1300L-CE): Industrial-grade performance for demanding applications

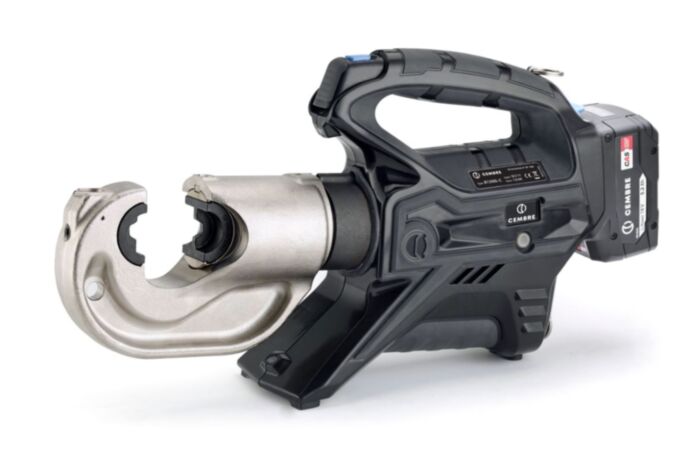

The cordless crimping tool B1300L-C is suitable for installing crimping electrical connectors on conductors up to 400 mm2. This crimping tool adopts the standard die set compatible with other 130 kN tools and heads. The head with special enlarged opening of up to 42 mm is designed to facilitate removal of the tool from the crimping area. The 180° rotation allows the crimping tool to be adapted to the various modes of use. Quiet and easy to handle, the B1300L-C crimping tool has a solid and compact design to withstand any stress and is equipped with an ergonomic handle to ensure high levels of comfort even with prolonged use. For added safety, it features a quick pressure release button and a protected run button to prevent accidental operation. LED lights illuminate the working area. The tool features an OLED display to monitor various parameters in real time, including: - the force developed and thus the correct execution of crimping - the battery charge status - the number of completed and remaining work cycles before maintenance - other general operating information To enhance the user experience, the tool is equipped with an automatic rechargeable battery coupling system with control button. SMARTOOL technology allows recorded data to be displayed and downloaded, providing full digital support.

Key Features

• The cordless crimping tool B1300L-C is suitable for installing crimping electrical connectors on conductors up to 400 mm2
• This crimping tool adopts the standard die set compatible with other 130 kN tools and heads
• The head with special enlarged opening of up to 42 mm is designed to facilitate removal of the tool from the crimping area
• The 180° rotation allows the crimping tool to be adapted to the various modes of use. Quiet and easy to handle, the B1300L-C crimping tool has a solid and compact design to withstand any stress and is equipped with an ergonomic handle to ensure high levels of comfort even with prolonged use
• For added safety, it features a quick pressure release button and a protected run button to prevent accidental operation

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

• What is this product used for? BATTERY-POWERED HYDRAULIC CRIMPING TOOL - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
