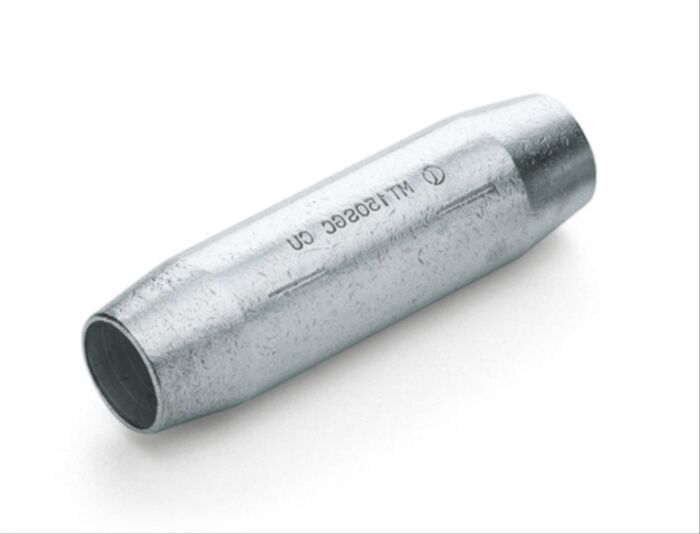

2541850 Cembre MT95S-GC COPPER CONNECTOR

Cembre MT95S-GC Copper Connector: Reliable Power Distribution for Demanding Applications

The Cembre MT95S-GC copper connector is designed for robust and dependable electrical connections in high-voltage applications. Built to exacting standards, this butt connector ensures secure crimping for copper conductors ranging from 95mm² to 100mm², providing long-lasting performance in even the most challenging environments.

Key Features

• High voltage rating: Up to 35,000V
• Wide operating temperature range: -50°C to 150°C
• Electrolytic copper construction with 99.95% purity for superior conductivity
• Tin-plated surface treatment for enhanced corrosion resistance
• Compliant with international standards (Customs code: 85359000, ETIM Class 7: EC001059)
• Clearly marked with factory and Cembre catalogue number for easy identification

Technical Specifications

• Part Number/SKU: 2541850
• Connector Type: Butt Connector
• Cable Cross Section: 95mm² - 100mm²
• Operating Voltage: Up to 35,000V
• Operating Temperature: -50°C to +150°C
• Conductor Material: Electrolytic Copper (99.95% purity)
• Surface Treatment: Tin Plated (min. 3µm)
• Barrel Type: Closed
• Length (L): 80mm
• Width (A): 36.5mm
• Diameter (⌀): 13.5mm
• Cable Stripping Length: 40.1mm
• Packaging: Box of 30 pieces (minimum order quantity: 3 pieces)

Applications

• Industrial power distribution
• High-voltage electrical systems
• Panel building
• Maintenance and repair operations
• Applications requiring reliable, high-temperature connections
