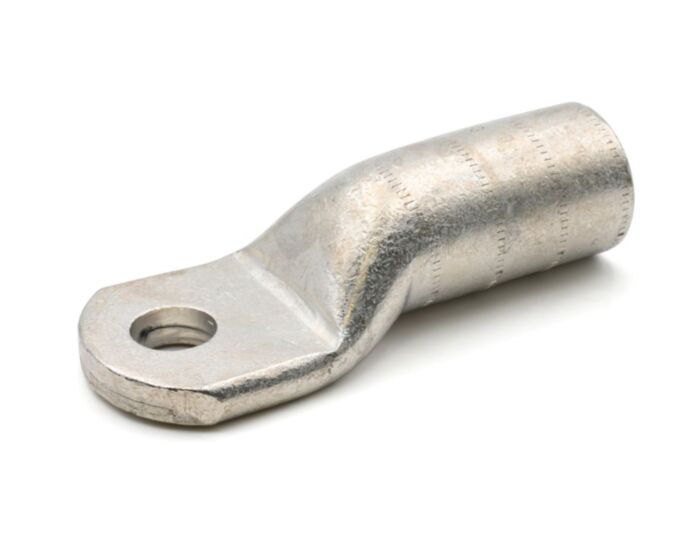

CA70S-M10 Copper Terminal: Reliable Connections for Demanding Applications

The CA70S-M10 copper terminal is engineered for robust and reliable electrical connections in industrial settings. Its high-quality electrolytic copper construction, tin plating, and rigorous testing ensure consistent performance and longevity, even in challenging environments. This terminal is ideal for panel builders, electricians, and maintenance engineers seeking a dependable solution compliant with industry standards.

Key Features

• High-temperature Resistance: Operates reliably from -50°C to 150°C.
• Durable Construction: Made from 99.95% pure electrolytic copper with 3µm tin plating for superior corrosion resistance.
• Easy Insertion: Designed for effortless wire insertion and secure crimping.
• High Voltage Capacity: Rated for up to 35,000V.
• Vibration Resistant: Ensures consistent performance in demanding industrial environments.
• Clear Markings: Features factory mark, Cembre catalogue number, conductor section and nature, and screw diameter for easy identification.
• M10 Screw Diameter: Provides a secure and stable connection.

Technical Specifications

• Part Number: 2531420
• Cat Number: CA70S-M10
• Minimum Operating Temperature: -50°C
• Maximum Operating Temperature: 150°C
• Maximum Operating Voltage: 35,000V
• Conductor Body Material: Electrolytic copper with purity above 99.95%
• Surface Treatment: Tin plating (min. 3µm)
• Screw Diameter: M10
• ØD: 10.5mm
• B: 26mm
• N: 11mm
• M: 13mm
• I: 64.2mm
• L: 63-70mm
• A: 147.7mm
• Ø: 40mm
• Cable Stripping Length: 11mm
• Ø1: 44mm

Applications

• Industrial control panels
• Power distribution systems
• Motor connections
• High-voltage applications
• Maintenance and repair
