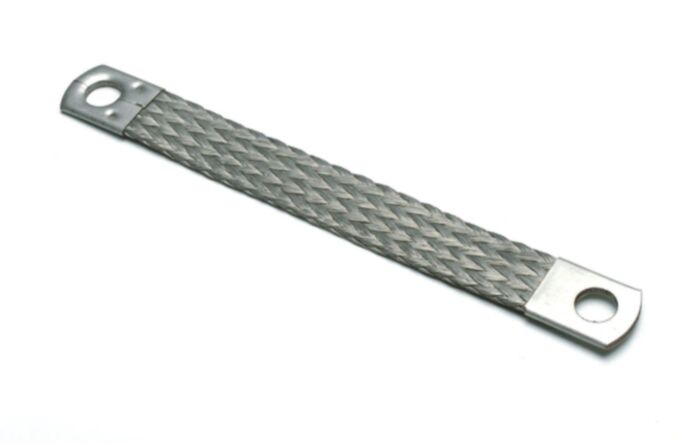

2519030 Cembre FL16-350ST FLEXIBLE BRAID
MPN: 2519030
Alt. SKU: FL16-350-ST
Special Price
£8.88
£7.40
Regular Price
£11.10
2519030 Cembre FL16-350ST FLEXIBLE BRAID is available to buy in increments of 50
Why Choose the FL16-350ST Flexible Braid (2519030)?
The FL16-350ST Flexible Braid (2519030) is a high-quality, tin-plated copper braid designed for demanding electrical applications. Its robust construction and compliance with UL 467 and RoHS standards make it ideal for panel building, industrial maintenance, and other professional electrical work where reliability and safety are paramount. The 16mm² cross-section delivers a high current-carrying capacity, while the flexible design allows for easy installation in tight spaces.
Key Features
- High Current Capacity: Handles substantial current loads (28.8 · 35.2 a/mm²).
- Durable Construction: Made from high-purity (99.95%) electrolytic copper with tin plating for corrosion resistance.
- Flexible and Easy to Install: Adapts to complex configurations and tight spaces.
- Compliant with Standards: Meets UL 467 and RoHS requirements, ensuring safety and reliability.
- Annealed for Enhanced Flexibility: Provides increased malleability and ease of use.
Technical Specifications
- SKU / Part Number: 2519030
- Cat Number: FL16-350-ST
- Minimum Operating Temperature: -50°C
- Maximum Operating Temperature: 150°C
- Braid Material: Electrolytic copper (99.95% purity)
- Surface Treatment: Tin plating
- Screw Diameter: M8
- Center Distance Between Hole and Outer Edge: 10mm
- Eyelet Diameter: 8.5mm
- Electrocode: 3686
- ETIM Class 7: Braid wire [EC000839]
- Customs Code: 74130000
- UL Standard: UL 467
- ROHS Compliant: Yes
- Current Load: 28.8 · 35.2 a/mm²
- Braid Cross Section: 16mm²
- B (Width): 17mm
- L (Length): 350mm
- Center Distance Between Holes: 330mm
- Gross Weight: 55.96g
- Packaging: Bag of 50 pieces
Applications
- Panel building
- Industrial machinery maintenance
- High-temperature electrical installations
- Grounding and bonding applications
- Power distribution systems
Yes, the FL16-350ST is designed for high-temperature applications with an operating range from -50°C to 150°C.
Frequently Asked Questions
What makes this product special?
This product meets strict UL 467 and RoHS compliance standards and is made from robust, high-purity electrolytic copper with tin plating for enhanced corrosion resistance and longevity.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2519030 |
| Country of Manufacture | Italy |
| HS Code | 74130000 |
| Alternative Product SKU | FL16-350-ST |
| Barcode | 8016692048826 |
| Packed Quantity | 50 |
