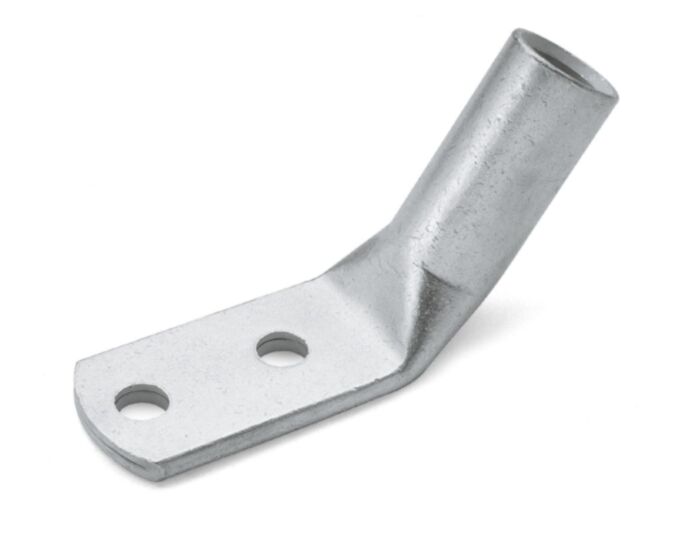

2509346 Cembre 2A80-2M14/55Deg COPPER TERMINAL
MPN: 2509346
Alt. SKU: 2A80-2M14/55
Special Price
£61.34
£51.12
Regular Price
£76.68
2509346 Cembre 2A80-2M14/55Deg COPPER TERMINAL is available to buy in increments of 5
Ensure reliable and compliant connections in demanding electrical applications with the 2A80-2M14/55° Copper Terminal. Designed for professional electricians, panel builders, and maintenance engineers, this high-quality terminal offers exceptional performance and durability.
Why Choose the 2A80-2M14/55° Copper Terminal?
This copper terminal provides a secure and efficient connection for high-voltage applications. Its robust construction and precise design guarantee optimal performance even in challenging environments.
Key Features
- Suitable for copper conductors up to 400 mm²
- 55° bend angle for flexible installation
- M14 screw diameter for secure tightening
- Easy insertion input for streamlined workflow
- Vibration resistant for increased reliability
- Wide operating temperature range (-50°C to 150°C)
- Compliant with relevant industry standards (ETIM Class 7: EC001051)
Technical Specifications
- Part Number: 2509346
- Cat Number: 2A80-2M14/55
- Operating Temperature: -50°C to 150°C
- Maximum Operating Voltage: 35,000 V
- Conductor Material: Electrolytic copper with purity above 99.95%
- Surface Treatment: Tin plating
- Screw Diameter: M14
- Cable Cross Section: Up to 400 mm²
- Customs Code: 85369010
- ETIM Class 7: Tube cable lug for copper conductors [EC001051]
Applications
- High-voltage electrical installations
- Industrial control panels
- Power distribution systems
- Maintenance and repair operations
This terminal is compatible with copper conductors up to 400 mm².
The operating temperature range is -50°C to 150°C.
Frequently Asked Questions
What makes this product special?
This product meets strict compliance and is made from robust materials, ensuring reliability and longevity in demanding electrical applications. Its tin-plated electrolytic copper construction provides excellent conductivity and corrosion resistance.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2509346 |
| Country of Manufacture | United Kingdom (includes NI) |
| HS Code | 85369010 |
| Alternative Product SKU | 2A80-2M14/55 |
| Barcode | 8016692790244 |
| Packed Quantity | 5 |
