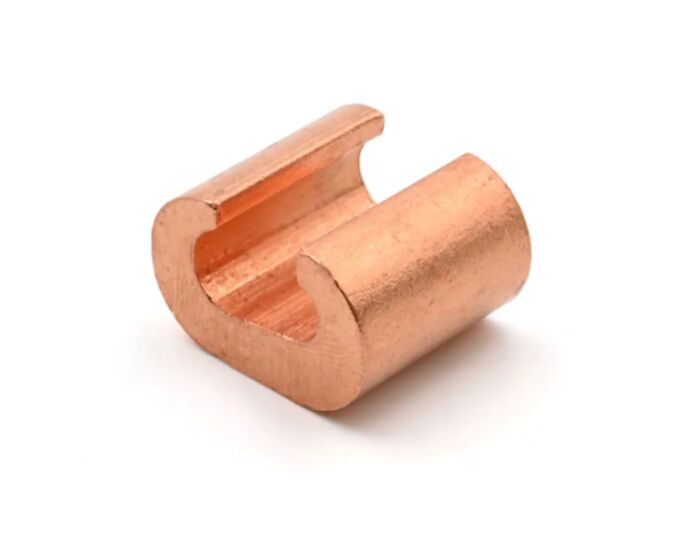

2490070 Cembre C10-C10 COPPER C-SLEEVE

SLEEVE CONNECTOR - Cembre (C10-C10): Industrial-grade performance for demanding applications

The C-C series connectors are made from electrolytic copper profile of more than 99.9% purity. They are the ideal choice for shunts from overhead lines in bare and insulated conductors, shunts from underground lines and grounding installations. Thanks to the annealing process, the connectors are easier to compress and more resistant to mechanical stress, making them usable with a wide range of conductor cross-sections. Typical uses include control panels, switchgear, machinery and general electrical installations.

Key Features

• The C-C series connectors are made from electrolytic copper profile of more than 99.9% purity
• They are the ideal choice for shunts from overhead lines in bare and insulated conductors, shunts from underground lines and grounding installations. Thanks to the annealing process, the connectors are easier to compress and more resistant to mechanical stress, making them usable with a wide range of conductor cross-sections

Technical Specifications

• tipo: tap connection; joint connection
• Type of branch circuit: 10
• Cross section range of the through cable [mm²]: 1.5 ÷ 10
• Cross section range of the branch cable [mm²]: 12
• C [mm]: 12.6
• L [mm]: 8.4
• B [mm]: 100
• Unit in minimal packaging [pce]: 500

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

Frequently Asked Questions

• What is this product used for? SLEEVE CONNECTOR - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
