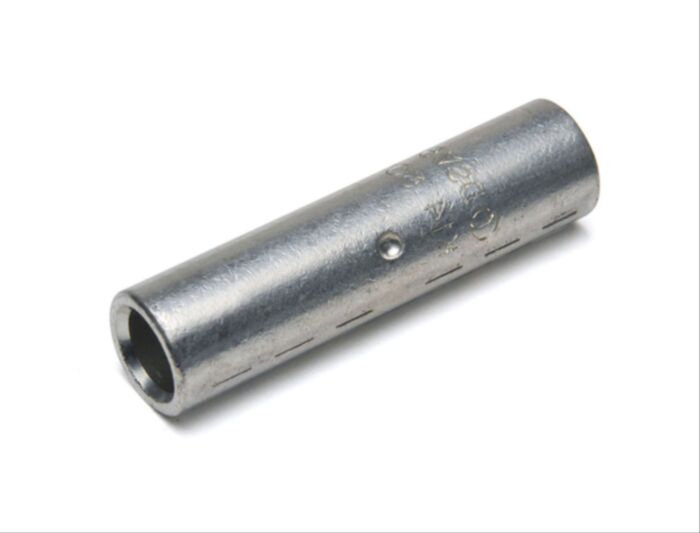

2489035 Cembre DSV50 DIN 46267 T1 COPPER CONNECTOR
MPN: 2489035
Alt. SKU: DSV50
Special Price
£3.32
£2.77
Regular Price
£4.15
2489035 Cembre DSV50 DIN 46267 T1 COPPER CONNECTOR is available to buy in increments of 50
Why Choose the DSV50 Copper Connector?
The DSV50 Copper Connector is a high-quality, reliable solution for crimping 50mm2 copper conductors. Engineered to meet the stringent DIN 46267 T1 standard, this connector ensures secure and efficient electrical connections in demanding industrial environments. Its easy insertion design, robust construction, and tin-plated surface offer excellent performance and long-term durability.
Key Features
- Compliant with DIN 46267 T1, guaranteeing quality and reliability.
- Easy insertion design for quick and efficient installation.
- 50mm2 conductor capacity for high-power applications.
- Tin-plated electrolytic copper construction for enhanced conductivity and corrosion resistance.
- Wide operating temperature range (-50°C to 150°C).
- Clear markings for easy identification and traceability.
Technical Specifications
- Part Number: 2489035
- Connector Type: Butt connector
- Conductor Material: Electrolytic copper (99.95% purity)
- Surface Treatment: Tin plating (min. 3µm thickness)
- Cable Cross Section: 50mm2
- Operating Temperature: -50°C to 150°C
- Standard: DIN 46267 T1
- Length (L): 56mm
- Width (A): 28mm
- Diameter (⌀): 10mm
- Cable Stripping Length: 30.8mm
Applications
- Industrial control panels
- High-power electrical installations
- Machinery and equipment wiring
- Maintenance and repair applications
Frequently Asked Questions
This connector meets the stringent DIN 46267 T1 standard, ensuring superior quality, reliability, and suitability for demanding applications. It's manufactured from high-purity electrolytic copper with tin plating for optimal conductivity and corrosion resistance.
The DSV50 operates reliably within a wide temperature range of -50°C to 150°C.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2489035 |
| Country of Manufacture | United Kingdom (includes NI) |
| HS Code | 85369010 |
| Alternative Product SKU | DSV50 |
| Barcode | 8016692758015 |
| Packed Quantity | 50 |
| Product Lead Time | Please contact us for a delivery time |
