2480410 Cembre L14-M THROUGH CONNECTOR

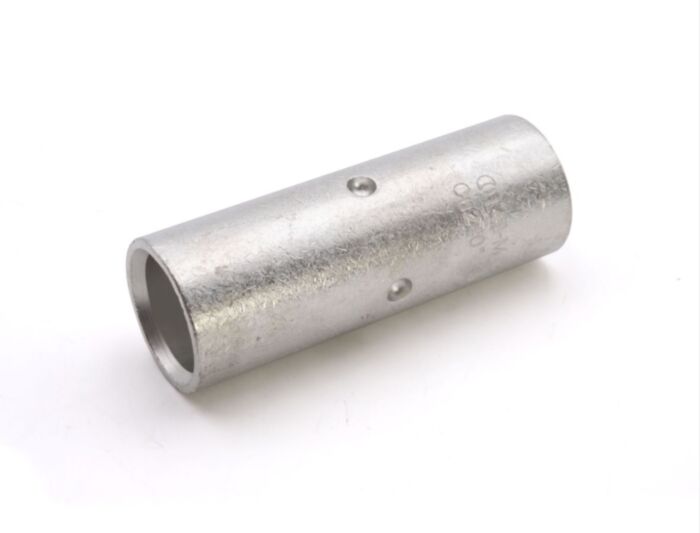

Cembre L14-M Through Connector (2480410): Reliable Connections for Demanding Applications

The Cembre L14-M Through Connector (2480410) is a high-quality crimp connector designed for secure and efficient wire terminations in various industrial settings. Engineered for optimal performance and compliance with UL 486A-486B, it provides a robust and dependable connection, even in challenging environments.

Key Features

• UL 486A-486B Compliant: Ensuring safety and reliability in critical applications.
• High-Temperature Resistance: Operates reliably from -50°C to 150°C.
• Electrolytic Copper Construction: With over 99.95% purity and a 3µm tin plating for superior conductivity and corrosion resistance.
• Easy Insertion: Streamlined design for quick and efficient installation.
• Closed Barrel Design: Provides a secure and protected crimp connection.

Technical Specifications

• Part Number: 2480410
• Connector Type: Butt Connector
• Temperature Range: -50°C to 150°C
• Conductor Material: Electrolytic Copper (99.95% purity)
• Surface Treatment: Tin Plating (3µm minimum thickness)
• Internal Diameter: 11.3mm
• Length (L): 39mm
• Width (A): 19.5mm
• Cable Stripping Length: 21.4mm
• Packaging: Box (50 pieces per minimal package, 200 pieces per standard package)
• ETIM Class 7: Crimp splices for copper conductor [EC001059]
• Markings: Factory mark, Cembre catalogue number, conductor section and nature, UL logo

Applications

• Industrial Control Panels
• Machinery Wiring
• HVAC Systems
• Power Distribution
• Maintenance and Repair
