2447265 Cembre ANE17-M10/19 INSULATED TERMINAL
MPN: 2447265
Alt. SKU: ANE17-M10/19
Special Price
£2.53
£2.11
Regular Price
£3.17
2447265 Cembre ANE17-M10/19 INSULATED TERMINAL is available to buy in increments of 25

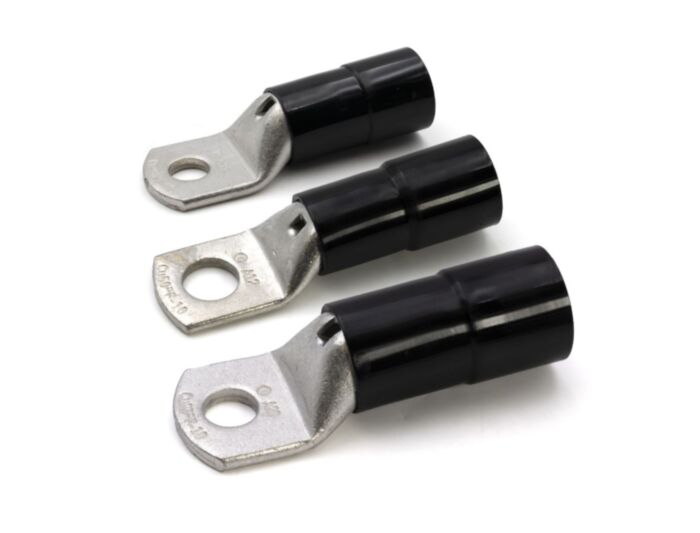

ANE17-M10/19 Insulated Copper Cable Lug - 70mm² with M10 Screw
The ANE17-M10/19 is a high-quality, partially insulated copper cable lug designed for secure and reliable cable termination in demanding industrial applications. Suitable for 70mm² conductors and featuring an M10 screw connection, this lug offers excellent conductivity and durability, ensuring long-lasting performance.
Why Choose the ANE17-M10/19?
This cable lug offers several benefits for professional electricians, panel builders, and maintenance engineers:
Key Features
- Reliable Connection: The tin-plated electrolytic copper construction with a minimum 99.95% purity ensures optimal conductivity and corrosion resistance.
- Durable Design: Built to withstand a wide range of operating temperatures (-20°C to 115°C, with short periods up to 130°C), this lug is suitable for challenging environments.
- Easy Installation: The "easy insertion input" design facilitates quick and efficient cable termination.
- Clear Markings: Factory markings, including Cembre catalogue number, conductor section, nature, and screw diameter, simplify identification and ensure correct installation.
- Compliant with Standards: Classified under ETIM Class 7: Tube cable lug for copper conductors [EC001051] (Customs code: 85369010).
Technical Specifications
- SKU / Part Number: 2447265
- Cat Number: ANE17-M10/19
- Conductor Cross Section: 70 mm²
- Screw Diameter: M10
- Operating Temperature: -20°C to 115°C (short periods up to 130°C)
- Insulation Material: Polyamide PA6.6 (Partial Insulation)
- Conductor Material: Electrolytic copper (99.95% purity)
- Surface Treatment: Tin plating (min. 3µm thickness)
- Dimensions (see datasheet for details): D 10.5mm, B 19mm, N 10mm, M 11mm, I 41mm, L 69.8mm, A 20mm, C 40mm, 2 17.9mm, 3 20.4mm, 13mm
- Cable Stripping Length: 23mm
- Packaging: Box (25 units minimum order, 100 units standard packaging)
Applications
- Industrial control panels
- Power distribution systems
- Motor connections
- Machinery wiring
- Maintenance and repair
Frequently Asked Questions
What makes this product special?
This product meets strict industry compliance standards and is manufactured from robust, high-quality materials to ensure reliability and longevity in demanding applications.
What is the operating temperature range?
The ANE17-M10/19 operates effectively between -20°C and 115°C. It can also withstand short periods at temperatures up to 130°C.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2447265 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | ANE17-M10/19 |
| Barcode | 8016692039688 |
| Packed Quantity | 25 |
