2415875 Cembre ANE3-U5 INSULATED TERMINAL

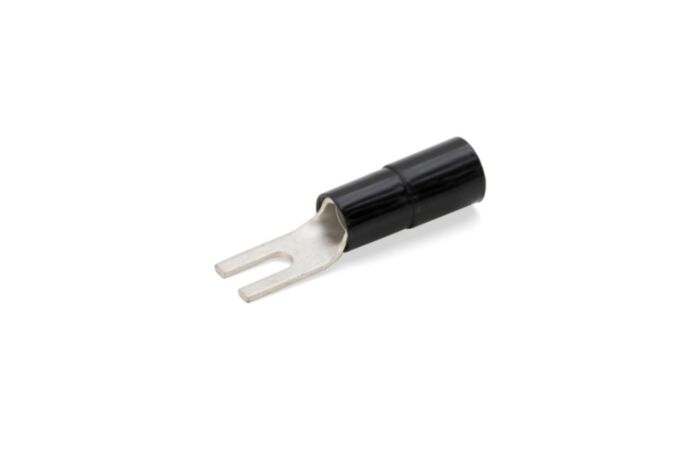

FORK TERMINAL - Cembre (ANE3-U5): Industrial-grade performance for demanding applications

ANE-U series terminals are made from electrolytic copper tape of more than 99.9% purity and electrolytically tinned. They are the ideal choice for connecting copper cables to terminals of contactors, thermal relays, etc., fitted with captive screws. Due to the annealing process and silver alloy brazing, the connectors are easier to compress and more resistant to mechanical stress. The PA 6.6 insulation coating simplifies installation and restoration of the cable insulation. The funnel-shaped inner shaping of the insulated cover facilitates insertion of the conductor into the terminal and prevents stretching of the elementary wires, thus reducing wiring time. These terminals can also be used on rigid cables when compressed with MN..RF-C series radial containment dies.

Key Features

• ANE-U series terminals are made from electrolytic copper tape of more than 99.9% purity and electrolytically tinned
• They are the ideal choice for connecting copper cables to terminals of contactors, thermal relays, etc., fitted with captive screws
• Due to the annealing process and silver alloy brazing, the connectors are easier to compress and more resistant to mechanical stress. The PA 6.6 insulation coating simplifies installation and restoration of the cable insulation
• The funnel-shaped inner shaping of the insulated cover facilitates insertion of the conductor into the terminal and prevents stretching of the elementary wires, thus reducing wiring time. These terminals can also be used on rigid cables when compressed with MN..RF-C series radial containment dies

Technical Specifications

• tipo: M5
• Screw diameter: 11.5
• B [mm]: 10
• M [mm]: 20
• I [mm]: 5.3
• D [mm]: 8
• N [mm]: 16 ÷ 16
• Range of cable cross section [mm²]: 41.1
• L [mm]: 10
• A [mm]: 24
• C [mm]: 9.2
• 2 [mm]: 10.5
• 3 [mm]: 5.9
• [mm]: 13
• Cable stripping length [mm]: 400

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

• What is this product used for? FORK TERMINAL - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
