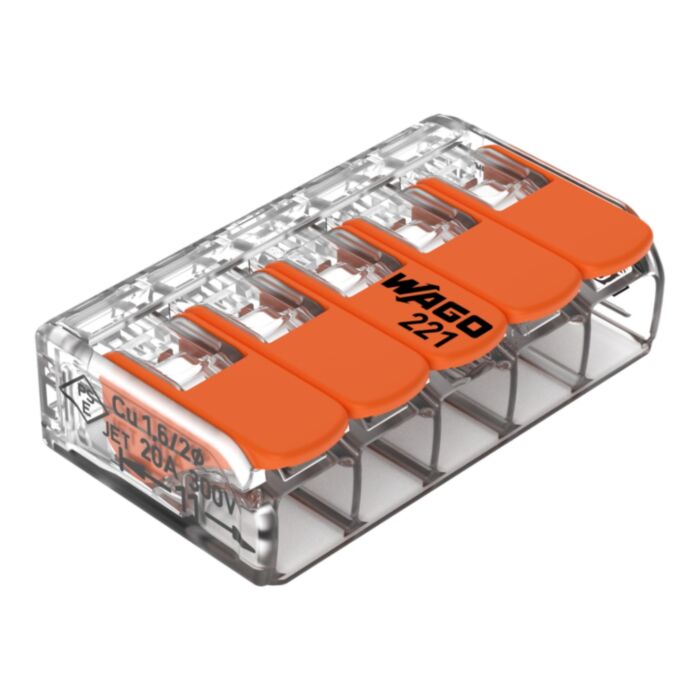

221-415 Wago Splicing connector with levers;for all conductor types;max. 4 mm²;transparent
MPN: 221-415
Alt. SKU: 221415
Special Price
£0.6630
£0.5525
Regular Price
£0.7800
221-415 Wago Splicing connector with levers;for all conductor types;max. 4 mm²;transparent is available to buy in increments of 25
Why Choose the WAGO 221-415 COMPACT Splicing Connector?
The WAGO 221-415 is a highly reliable COMPACT lever-operated splicing connector designed for fast and secure conductor connections in electrical installations. Part of the widely recognised WAGO 221 series, this connector allows electricians and panel builders to connect multiple conductors quickly without tools while maintaining strong and stable electrical contact.
Built using WAGO’s proven CAGE CLAMP® spring pressure connection technology, the connector provides constant contact force and vibration-resistant performance without the need for screw terminals. The integrated orange levers allow easy conductor insertion and removal, simplifying both installation and maintenance.
The transparent housing enables quick visual inspection of conductor insertion while the compact design optimises space inside junction boxes, control cabinets and electrical enclosures. The 221-415 connector is widely used in building wiring, industrial automation systems and lighting installations where reliable conductor splicing is essential.
Key Advantages
- Fast tool-free wiring using integrated lever actuation.
- Reliable CAGE CLAMP® spring pressure connection.
- Supports solid, stranded and fine-stranded conductors.
- Transparent housing allows visual inspection of wiring.
- Compact design ideal for junction boxes and electrical cabinets.
- Reusable connector simplifies maintenance and wiring modifications.
Key Features
- COMPACT splicing connector with levers.
- 5 conductor connection points.
- CAGE CLAMP® spring pressure connection technology.
- Supports solid, stranded and fine-stranded conductors.
- Transparent housing with orange levers.
- Tool-free installation and conductor removal.
- Designed for electrical installation and panel wiring.
Technical Specifications
- Manufacturer: WAGO
- Series: 221 COMPACT Splicing Connectors
- Model: 221-415
- Connection type: Lever-operated splicing connector
- Number of conductors: 5
- Connection technology: CAGE CLAMP® spring pressure
- Conductor types: Solid, stranded and fine-stranded
- Conductor cross-section: approx. 0.14 – 4 mm²
- Rated voltage: up to 450 V
- Rated current: up to 32 A
- Housing material: Polycarbonate
- Colour: Transparent housing with orange levers
- Application: Electrical splicing and conductor connections
Modern Electrical Wiring Solutions
Electrical installations increasingly require connection technologies that provide both speed and reliability. Lever-operated connectors such as the WAGO 221 series eliminate screw terminals and allow conductors to be connected quickly without specialised tools.
These connectors are widely used in lighting systems, building wiring installations and industrial automation panels where dependable electrical connections are required.
Typical Applications
- Electrical junction boxes and distribution wiring.
- Lighting circuit installations.
- Industrial control panels and automation systems.
- Building electrical wiring systems.
- Maintenance and modification of existing wiring installations.
Frequently Asked Questions
What is the WAGO 221-415 connector used for?
The connector is used to splice and connect electrical conductors quickly and safely in junction boxes, lighting circuits and electrical installations.
How many wires can this connector join?
The WAGO 221-415 is designed to connect five conductors in a compact splicing connector.
What types of wire are supported?
The connector supports solid, stranded and fine-stranded conductors within the specified conductor size range.
Do I need tools to install the connector?
No. The integrated lever mechanism allows tool-free wiring. Simply lift the lever, insert the conductor and close the lever.
Where are WAGO 221 connectors commonly used?
They are widely used in lighting installations, junction boxes, industrial control panels and building wiring systems.
Trusted by Electricians and Engineers
WAGO 221 series splicing connectors are trusted worldwide by electricians and automation engineers for delivering fast installation and reliable electrical connections.
| Manufacturer Part Number | 221-415 |
|---|---|
| Height | 220mm |
| Width | 170mm |
| Depth | 110mm |
| Manufacturer | Wago |
| Packed Quantity | 25 |
| HS Code | 85369010 |
| Barcode | 4055143234658 |
| Terminal Type | Splice |
| Terminal Size | 4mm |
| Colour | Transparent |
| Type of electric connection | Lever connection |
| Country of Manufacture | Germany |
| Alternative Product SKU | 221415 |
