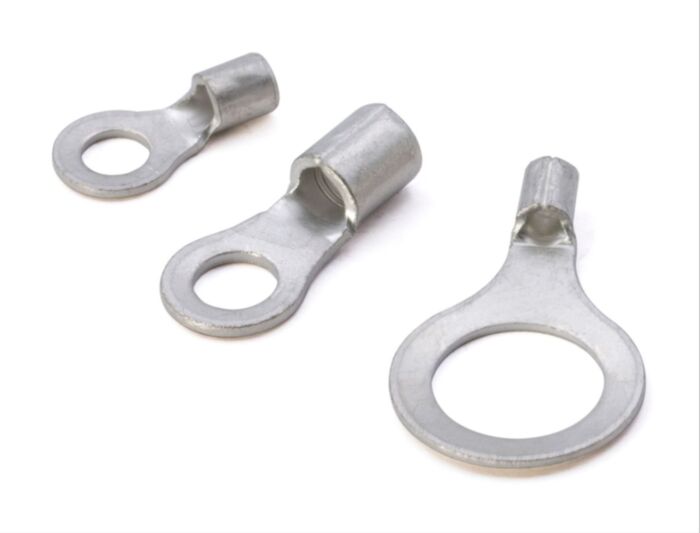

2163890 Cembre S6-M12 RING TERMINAL
MPN: 2163890
Alt. SKU: S6-M12
Special Price
£0.4454
£0.3712
Regular Price
£0.5568
2163890 Cembre S6-M12 RING TERMINAL is available to buy in increments of 100
Why Choose the S6-M12 Ring Terminal (2163890)?
The S6-M12 Ring Terminal (2163890) is a robust and reliable solution for secure electrical connections in demanding industrial environments. Built to exacting standards, this tin-plated copper terminal ensures optimal conductivity and long-lasting performance. Ideal for panel builders, electricians, and maintenance engineers, the S6-M12 offers a secure and efficient method for terminating wires in high-vibration and high-temperature applications.
Key Features
- High-Temperature Resistance: Operates reliably from -50°C to 150°C.
- Durable Construction: Made from high-purity electrolytic copper with tin plating for superior corrosion resistance.
- Secure Connection: Knurled internal barrel ensures a tight grip on the conductor.
- M12 Screw Diameter: Compatible with standard M12 bolts.
- Compliant with Standards: Meets ETIM Class 7 EC001052 for solderless copper terminals.
- Efficient Installation: Designed for ease of use and quick termination.
Technical Specifications
- SKU: 2163890
- Part Number: S6-M12
- Operating Temperature: -50°C to 150°C
- Conductor Material: Electrolytic Copper (99.95% purity)
- Surface Treatment: Tin Plating (min. 3µm)
- Cable Cross-Section: 4-6 mm²
- Screw Diameter: M12
- Customs Code: 85369010
- ETIM Class: EC001052
- Dimensions: ØD 13mm, B 19mm, N 9.5mm, M 15.1mm, I 21.5mm, L 31mm, A 6.4mm, Ø 3.6mm, Ø1 5.6mm
- Cable Stripping Length: 7mm
Applications
- Industrial control panels
- Machinery wiring
- High-temperature environments
- Power distribution systems
- Maintenance and repair operations
Frequently Asked Questions
This product meets strict industry compliance standards and is manufactured from high-quality, robust materials to ensure reliability and longevity in demanding applications.
The S6-M12 terminal is designed for cable cross-sections between 4 mm² and 6 mm².
The minimum order quantity is 100 pieces.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2163890 |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | S6-M12 |
| Barcode | 8016692036038 |
| Packed Quantity | 100 |
| Product Lead Time | Please contact us for a delivery time |
