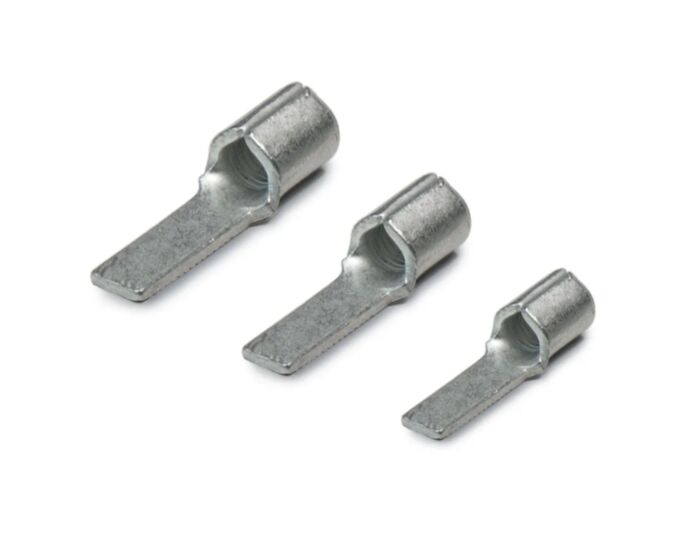

2161310 Cembre S1.5-PP12 BLADE TERMINAL

Why Choose the S1.5-PP12 Blade Terminal (2161310)?

The S1.5-PP12 Blade Terminal (2161310) offers reliable and compliant connectivity for demanding electrical applications. Engineered for durability and performance, these tin-plated, annealed copper terminals ensure secure connections in a wide range of industrial and panel building scenarios. Choose the S1.5-PP12 for its robust construction, precise dimensions, and adherence to industry standards, minimizing downtime and ensuring long-term reliability.

Key Features

• Tin-plated electrolytic copper for superior conductivity and corrosion resistance.
• Annealed for enhanced flexibility and ease of installation.
• Knurled internal barrel for enhanced grip and secure wire termination.
• Precise dimensions and tolerances for consistent performance.
• Compliant with relevant industry standards (ETIM Class 7: EC001052).
• Suitable for cable cross sections from 0.25 to 1.5 mm².
• Supplied in convenient packaging options for efficient inventory management.

Technical Specifications

• Part Number/SKU: 2161310
• Catalog Number: S1.5-PP12
• Operating Temperature: -50°C to +150°C
• Conductor Material: Electrolytic copper (99.95% purity)
• Surface Treatment: Tin plating (min. 3µm thickness)
• Barrel Type: Closed, knurled
• Cable Cross Section: 0.25 - 1.5 mm²
• Outer Barrel Diameter: 3.4 mm
• Cable Stripping Length: 4.6 mm
• Dimensions (B x P x L): 3 mm x 12.8 mm x 17 mm
• Customs Code: 85369010
• ETIM Class 7: Solderless copper terminals for copper conductors [EC001052]

Applications

• Industrial control panels
• Electrical installations
• Machinery wiring
• Maintenance and repair applications
• Panel building
