2146047 Cembre GKY-PP17 BLADE TERMINAL
MPN: 2146047
Alt. SKU: GKY-PP17
Special Price
£0.3619
£0.3016
Regular Price
£0.4524
2146047 Cembre GKY-PP17 BLADE TERMINAL is available to buy in increments of 100

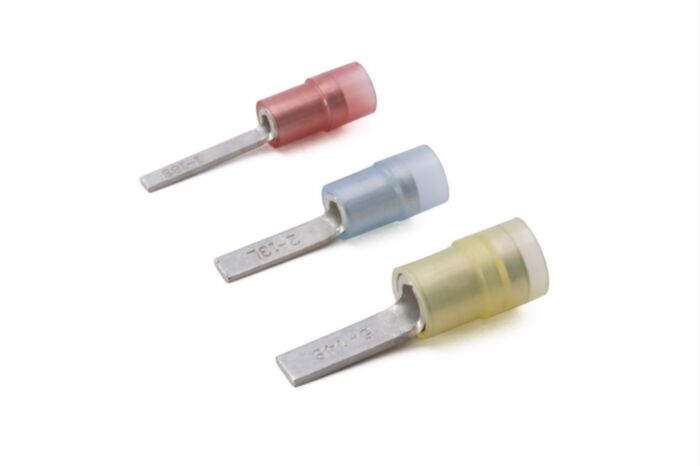

The GKY-PP17 yellow insulated blade terminal provides a secure and reliable connection for copper conductors ranging from 4 to 6 mm². Engineered for demanding applications, this terminal adheres to the UNI EN 1652:1999 standard, ensuring consistent performance and compliance. Ideal for panel builders, electricians, and industrial maintenance engineers, the GKY-PP17 offers robust construction, easy installation, and excellent resistance to vibration and high temperatures.
Why Choose the GKY-PP17 Blade Terminal?
This blade terminal offers significant advantages in terms of reliability, safety, and ease of use, making it a superior choice for your electrical projects:
Key Features
- High-Temperature Resistance: Operates reliably in temperatures from -20°C to 105°C, with short-term tolerance up to 110°C.
- Vibration Resistance: Features a reinforced anti-vibration collar and knurled internal barrel for a secure, vibration-proof connection.
- Easy Insertion: Designed for easy wire insertion, reducing installation time and effort.
- Compliant & Safe: Meets UNI EN 1652:1999, UL 94 V2 flammability rating, and halogen-free construction for enhanced safety.
- Durable Construction: Made with high-purity electrolytic copper (99.95%+) and tin-plated for superior conductivity and corrosion resistance.
Technical Specifications
- Part Number: 2146047
- Cat Number: GKY-PP17
- Cable Cross Section: 4 - 6 mm²
- Operating Temperature: -20°C to 105°C (short-term 110°C)
- Insulation: Partial, Yellow PA6.6
- Conductor Material: Electrolytic copper (99.95%+) with tin plating (min. 3µm)
- Flammability Rating: UL 94 V2
- Standard: UNI EN 1652:1999
- ETIM Class 7: EC001052 (Solderless copper terminals for copper conductors)
- Customs Code: 85369010
- Dimensions: B: 2mm, P: 18mm, L: 31mm, C: 13mm, Ø2: 7mm
- Packaging: Box of 100 pieces (minimum order quantity), standard pack 1,000 pieces
Applications
- Control panels
- Industrial machinery
- HVAC systems
- Power distribution
- Automotive wiring
- Lighting systems
Frequently Asked Questions
This product meets strict compliance with the UNI EN 1652:1999 standard and is manufactured from robust, high-quality materials, ensuring reliability and longevity in demanding applications. The anti-vibration features and high-temperature resistance further contribute to its exceptional performance.
The GKY-PP17 is designed for copper conductors with cross-sectional areas between 4 and 6 mm².
The minimum order quantity for the GKY-PP17 is 100 pieces.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2146047 |
| Colour | Yellow |
| Country of Manufacture | Taiwan |
| HS Code | 85369010 |
| Alternative Product SKU | GKY-PP17 |
| Barcode | 8016692570952 |
| Packed Quantity | 100 |
| Product Lead Time | Please contact us for a delivery time |
