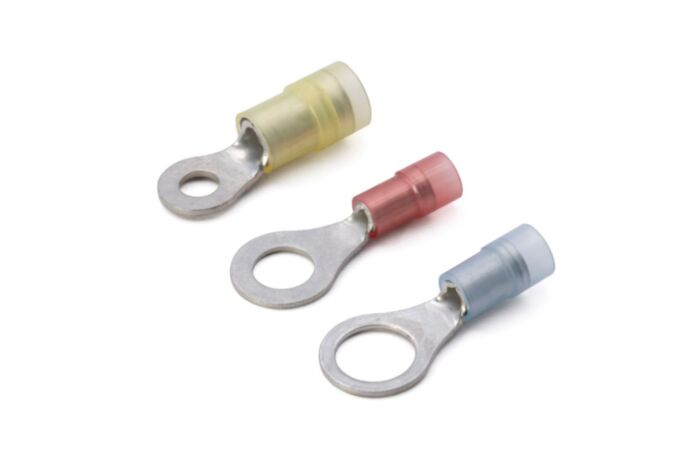

2146006 Cembre GKY-M16 RING TERMINAL

The GKY-M16 Ring Terminal (2146006) provides a robust and dependable solution for terminating copper conductors in electrical panels, industrial machinery, and other demanding environments. Engineered for superior performance and longevity, this yellow-insulated ring terminal ensures secure and compliant connections, minimizing downtime and maximizing safety.

Why Choose the GKY-M16 Ring Terminal?

This ring terminal offers significant advantages for professional electricians, panel builders, and maintenance engineers:

Key Features

• High-Temperature Resistance: Withstands operating temperatures up to 105°C and short-term exposures up to 110°C, ideal for challenging environments.
• Enhanced Durability: Features a barrel reinforcement ring and an anti-vibration collar, ensuring long-lasting performance even under vibration.
• Easy Installation: Easy insertion input design and knurled internal barrel surface facilitate quick and secure wire termination.
• Compliance & Safety: Conforms to UNI EN 1652:1999 and offers a UL 94 V2 fire rating, prioritizing safety and regulatory compliance.
• High-Quality Materials: Constructed from high-purity electrolytic copper with tin plating and a PA6.6 insulated cover for optimal conductivity and insulation.

Technical Specifications

• SKU/Part Number: 2146006
• Cat Number: GKY-M16
• Cable Cross Section: 4 - 6 mm²
• Screw Diameter: M16
• Operating Temperature: -20°C to 105°C (short-term to 110°C)
• Insulation Material: Polyamide PA6.6 (Yellow)
• Conductor Material: Electrolytic Copper (≥99.95% purity)
• Standard: UNI EN 1652:1999
• Fire Rating: UL 94 V2
• Customs Code: 85369010
• ETIM Class: EC001052
• Packaging: Box of 500 (minimum order 100)

Applications

• Industrial control panels
• Machinery wiring
• Power distribution systems
• HVAC installations
• Automotive applications
