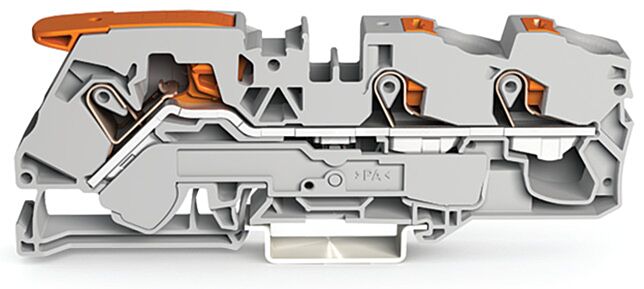

2116-5301 Wago 3-conductor through terminal block;with lever and push-button;16 mm²;gray

Why Choose the WAGO 2116-5301 TOPJOB® S Feed-Through Terminal Block?

The WAGO 2116-5301 is a high-capacity TOPJOB® S feed-through DIN rail terminal block designed for reliable conductor termination in industrial control panels and electrical distribution systems. It features WAGO’s advanced Push-in CAGE CLAMP® spring pressure connection technology, enabling secure and maintenance-free wiring with consistent contact force. :contentReference

This terminal block provides three connection points and supports conductor cross-sections up to 16 mm², making it suitable for higher current circuits and power distribution within control cabinets. The combination of push-in termination, lever actuation and push-button release allows rapid wiring while maintaining safe and vibration-resistant connections. :contentReference

Designed for mounting on standard DIN-35 rails, the 2116-5301 integrates easily into modern control panels and automation systems. Its compact and durable construction makes it ideal for demanding industrial environments where reliable electrical connections are essential.

Key Advantages

• Reliable Push-in CAGE CLAMP® spring pressure connection.
• Supports large conductors up to 16 mm² for higher current circuits.
• Tool-free push-in wiring for faster installation.
• Lever and push-button actuation for easy conductor insertion and removal.
• Secure vibration-resistant connections for industrial environments.
• Compatible with WAGO marking systems, jumpers and accessories.

Key Features

• TOPJOB® S feed-through DIN rail terminal block.
• 3 conductor connection points.
• Push-in CAGE CLAMP® connection technology.
• Lever and push-button actuation.
• Nominal conductor size: 16 mm².
• Compatible with solid and fine-stranded copper conductors.
• Front-entry wiring for organised control cabinet installation.
• Integrated test port and marking areas.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB® S 2116
• Model: 2116-5301
• Type: Feed-through terminal block
• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 3
• Number of levels: 1
• Nominal cross-section: 16 mm²
• Conductor range: 0.5 – 16 mm² (approx. 20 – 6 AWG)
• Rated voltage: up to 800 V
• Rated current: up to 76 A (IEC)
• Mounting type: DIN rail (EN 60715)
• Width: approx. 12 mm
• Housing material: Polyamide (PA66)
• Colour: Grey

Reliable Terminal Blocks for Industrial Control Panels

DIN rail terminal blocks are essential components in modern electrical installations. The WAGO TOPJOB® S system simplifies wiring while ensuring reliable electrical contact even under vibration, thermal cycling and demanding industrial conditions.

Push-in CAGE CLAMP® technology enables installers to connect conductors quickly without tools while maintaining consistent contact pressure and long-term connection reliability. These features make TOPJOB® S terminal blocks a popular choice for panel builders and automation engineers worldwide. :contentReference

Typical Applications

• Industrial automation control panels.
• Electrical power distribution within machinery.
• Process control systems and industrial equipment.
• Machine wiring and panel building.
• Building automation and electrical installations.

Trusted by Panel Builders

WAGO TOPJOB® S terminal blocks are widely used by automation engineers and panel builders for dependable DIN rail wiring and efficient control cabinet installation.
