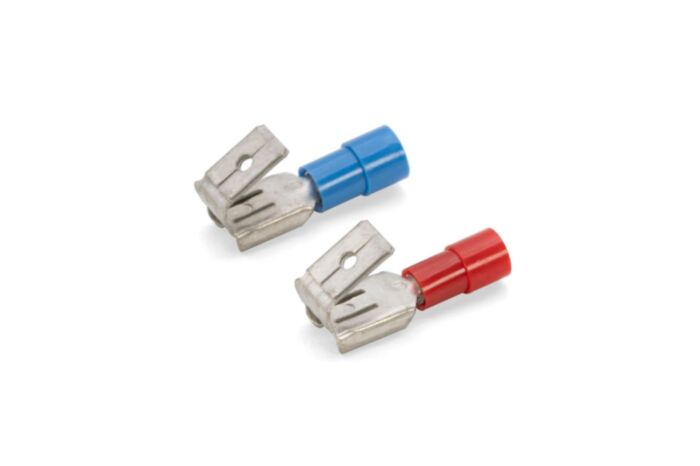

2051690 Cembre RF-FM608 PUSH ON TERMINAL
MPN: 2051690
Alt. SKU: RF-FM608
Special Price
£0.1651
£0.1376
Regular Price
£0.2064
2051690 Cembre RF-FM608 PUSH ON TERMINAL is available to buy in increments of 100
Why Choose the RF-FM608 Push-On Terminal?
The RF-FM608 Push-On Terminal is a reliable and robust solution for your electrical connection needs. Designed for professional electricians, panel builders, and industrial maintenance engineers, this terminal offers secure connections, high-temperature resistance, and compliance with UL and CSA standards. Its easy insertion input and clear markings simplify installation and ensure long-lasting performance in demanding environments.
Key Features
- Reliable Connection: Secure push-on design ensures a stable connection.
- High-Temperature Resistance: Operates reliably from -20°C to 115°C, with short-term tolerance up to 130°C.
- Compliant with Standards: Meets UL 310 and CAN/CSA C22.2 No. 153-14 standards.
- Easy Installation: Features easy insertion input and clear factory markings for conductor size.
- Halogen-Free: Enhanced safety and environmental friendliness.
- Durable Construction: Tin-plated brass conductor body with a polycarbonate PC10500AC insulated cover ensures long-term performance.
Technical Specifications
- SKU/Part Number: 2051690
- Cat Number: RF-FM608
- Operating Temperature: -20°C to 115°C (130°C short-term)
- Standards: UL 310, CAN/CSA C22.2 No. 153-14
- Fire Class: UL 94 V0
- Conductor Material: Tin-plated brass (min. 3µm coating)
- Insulation Material: Polycarbonate PC10500AC (Red)
- Cable Cross Section: 0.25 - 1.5 mm²
- Tongue Width: 6.8 mm
- Tongue Length: 7.8 mm
- Total Length: 21 mm
- Packaging: Box (100 pcs/min order, 1000 pcs/standard)
- Customs Code: 85366990
- ETIM Class 7: EC000516 (Round or flat plug/receptacle)
Applications
- Industrial Control Panels
- Building Automation Systems
- HVAC Systems
- Machinery Wiring
- Lighting Installations
The RF-FM608 is compatible with cable cross-sections ranging from 0.25 mm² to 1.5 mm².
The minimum order quantity for the RF-FM608 is 100 pieces.
Frequently Asked Questions
What makes this product special?
This product meets strict UL 310 and CAN/CSA C22.2 No. 153-14 compliance standards and is made from robust, halogen-free materials, ensuring reliability and safety in demanding applications.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2051690 |
| Colour | Red |
| Country of Manufacture | Italy |
| HS Code | 85366990 |
| Alternative Product SKU | RF-FM608 |
| Barcode | 8016692034928 |
| Packed Quantity | 100 |
