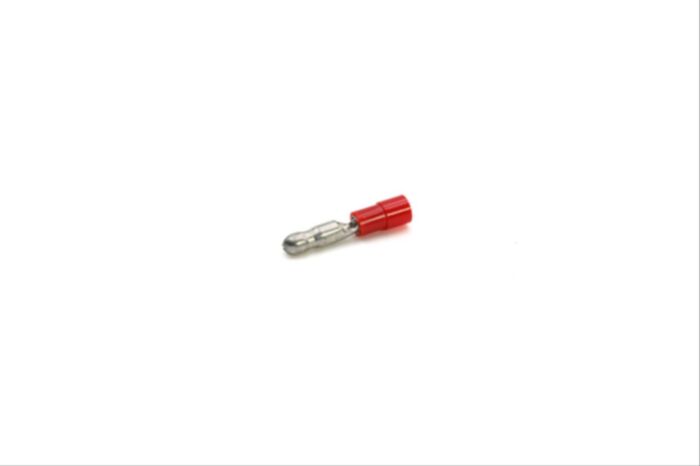

2051660 Cembre RF-BM4 MALE BULLET TERMINAL
MPN: 2051660
Alt. SKU: RF-BM4
Special Price
£0.1464
£0.1220
Regular Price
£0.1830
2051660 Cembre RF-BM4 MALE BULLET TERMINAL is available to buy in increments of 100
RF-BM4 Male Bullet Terminal (2051660): Reliable Connections for Demanding Applications
The RF-BM4 male bullet terminal (PN: 2051660) provides a secure and dependable electrical connection, engineered for performance in demanding industrial and electrical installations. Built to exacting standards, this terminal ensures consistent reliability, even in harsh operating environments. Its robust construction and high-temperature resistance make it the ideal choice for professional electricians, panel builders, and maintenance engineers.
Key Features
- Halogen-free construction for enhanced safety
- Easy insertion input for efficient assembly
- Wide operating temperature range (-20°C to 115°C, with short-term tolerance up to 130°C)
- UL 94 V0 flammability rating for superior fire resistance
- Tin-plated brass conductor body with minimum 3µm coating thickness for excellent conductivity and corrosion resistance
- Compatible with cable cross sections from 0.25mm² to 1.5mm²
Technical Specifications
- Part Number: 2051660
- Category Number: RF-BM4
- Operating Temperature: -20°C to 115°C (130°C short term)
- Flammability Rating: UL 94 V0
- Conductor Material: Tin-plated brass (min. 3µm coating)
- Insulation Material: Polycarbonate PC10500AC
- Cable Cross Section: 0.25mm² to 1.5mm²
- Connection Type: Male
- Color: Red
- Customs Code: 85366990
- ETIM Class 7: Round or flat plug/receptacle [EC000516]
Applications
- Industrial control panels
- Machinery wiring
- Automotive applications
- HVAC systems
- Lighting installations
Frequently Asked Questions
This product meets strict industry compliance standards and is constructed from robust, high-quality materials to ensure long-lasting performance and reliability in demanding environments.
This terminal is compatible with cable cross sections ranging from 0.25mm² to 1.5mm².
The RF-BM4 operates reliably from -20°C to 115°C, with short-term tolerance up to 130°C.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2051660 |
| Colour | Red |
| Country of Manufacture | Italy |
| HS Code | 85366990 |
| Alternative Product SKU | RF-BM4 |
| Barcode | 8016692034942 |
| Packed Quantity | 100 |
