2051650 Cembre RF-M608 PUSH ON TERMINAL
MPN: 2051650
Alt. SKU: RF-M608
Special Price
£0.1118
£0.0932
Regular Price
£0.1398
2051650 Cembre RF-M608 PUSH ON TERMINAL is available to buy in increments of 100

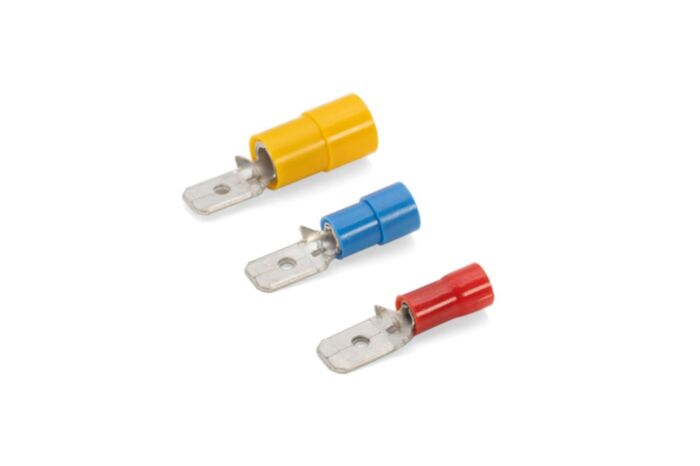

RF-M608 Push-On Terminal (2051650) â Red, 0.25-1.5mm²
The RF-M608 push-on terminal is a reliable and efficient solution for secure electrical connections in demanding environments. Engineered for durability and compliance with international standards, this terminal offers superior performance for professional electricians, panel builders, and industrial maintenance engineers.
Why Choose the RF-M608 Push-On Terminal?
The RF-M608 terminal offers several advantages for your electrical projects:
Key Features
- High-Temperature Resistance: Withstands operating temperatures up to 115°C (130°C short periods), ensuring reliable performance in challenging industrial settings.
- Easy Installation: Push-on design allows for quick and simple wire termination, saving valuable time on the job.
- Secure Connection: The barrel reinforcement ring and smooth internal barrel ensure a tight and secure grip on the conductor, minimizing the risk of loose connections.
- Compliance with Standards: Meets UL 310 and CAN/CSA C22.2 No. 153-14 standards, guaranteeing safety and reliability.
- Halogen-Free: Enhanced safety and reduced environmental impact thanks to halogen-free construction.
- Clearly Marked: Factory markings including conductor size and run information facilitate easy identification and organization.
Technical Specifications
- Part Number: 2051650
- Cat Number: RF-M608
- Operating Temperature: -20°C to 115°C (130°C short periods)
- Cable Cross-Section: 0.25mm² to 1.5mm²
- Insulation Material: Polycarbonate PC10500AC
- Insulation Color: Red
- Conductor Material: Brass with tin plating (minimum 3µm thickness)
- Tongue Width: 6.3mm
- Tongue Length: 7.3mm
- Cable Stripping Length: 5.2mm
- Standards: UL 310, CAN/CSA C22.2 No. 153-14
- Flammability Rating: UL 94 V0
- Halogen-Free: Yes
Applications
- Control panels
- Industrial machinery
- HVAC systems
- Lighting systems
- Automotive wiring
- General electrical installations
The RF-M608 is compatible with cable cross-sections ranging from 0.25mm² to 1.5mm².
Frequently Asked Questions
What makes this product special?
This product meets strict UL 310 and CAN/CSA C22.2 No. 153-14 compliance standards and is made from robust, high-temperature resistant materials ensuring reliable performance even in demanding industrial environments.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2051650 |
| Colour | Red |
| Country of Manufacture | Italy |
| HS Code | 85366990 |
| Alternative Product SKU | RF-M608 |
| Barcode | 8016692034898 |
| Packed Quantity | 100 |
