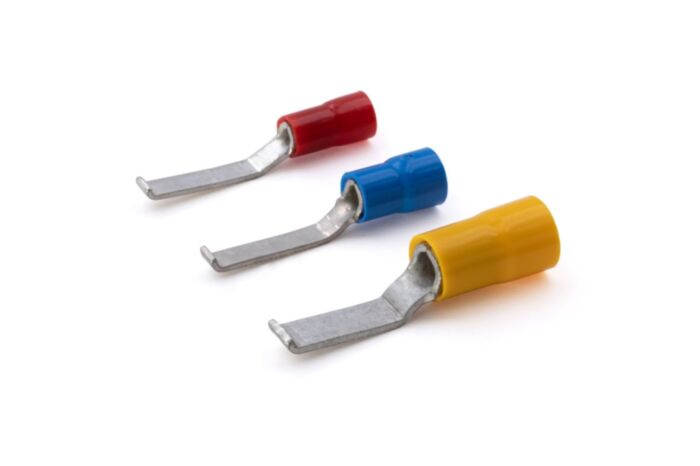

2051465 Cembre RF-PPL46 HOOKED BLADE TERMINAL

The RF-PPL46 Hooked Blade Terminal is a reliable and efficient solution for secure electrical connections in a variety of applications. Designed for professional electricians, panel builders, and industrial maintenance engineers, this terminal offers excellent performance and adherence to industry standards.

Why Choose the RF-PPL46 Hooked Blade Terminal?

This terminal provides a secure and efficient crimp connection, ensuring long-lasting performance in demanding environments. Its compact design and easy insertion input facilitate quick and straightforward installation, saving you valuable time and effort. The tin-plated, electrolytic copper construction guarantees excellent conductivity and corrosion resistance.

Key Features

• Secure and efficient crimp connection
• Easy insertion input for quick installation
• Tin-plated electrolytic copper for optimal conductivity and corrosion resistance
• UL 94 V0 self-extinguishing fire rating
• Compliant with ETIM Class 7: Solderless copper terminals for copper conductors [EC001052]
• Suitable for cable cross sections from 0.25 mm² to 1.5 mm²

Technical Specifications

• Part Number/SKU: 2051465
• Cat Number: RF-PPL46
• Operating Temperature: -20°C to 80°C (90°C short periods)
• Conductor Material: Electrolytic copper (99.95% purity)
• Surface Treatment: Tin plating (min. 3µm)
• Insulation Material: PVC (Red)
• Cable Cross Section: 0.25 - 1.5 mm²
• Tip Type: Hooked blade
• Tip Length: 17.5 mm
• Cable Stripping Length: 4.6 mm
• Dimensions (B x X x L x A x C x x 2 x 3): 3 x 1.7 x 28.3 x 4.2 x 10.1 x 1.8 x 4 x 5.5 mm
• UL 94: V0
• ETIM Class: EC001052
• Customs Code: 85369010
• Packaging: Box (100 pcs/min order)

Applications

• Control panels
• Industrial machinery
• Lighting systems
• HVAC installations
• Automotive wiring
• General electrical installations
